pH & Electrochemistry

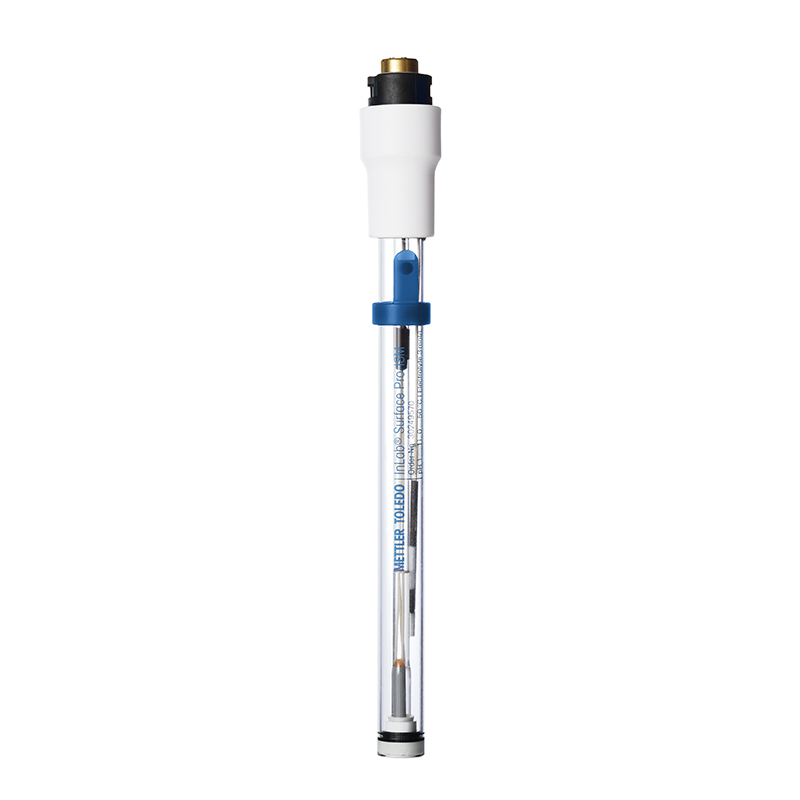

pH Sensor InLab® Surface Pro-ISM
A glass-body, combination pH electrode with integrated temperature probe, MultiPinTM head and a flat membrane for measuring surfaces like paper, agar plates and skin.
Specifications
Measuring range
pH 1 – 11
Type of junction
Ceramic ring
Shaft Material
PSU
Sensor Type
Combined electrode
Parameter
pH
Reference System
ARGENTHAL™ with Ag+-trap
Reference electrolyte
3 mol/L KCl
Membrane glass
LoT
Membrane resistance (25°C)
< 800 MΩ
Intelligent Sensor Management (ISM®)
Yes
Temperature probe
NTC 30 kΩ
Low Maintenance
No
Signal type
Analog
Reference electrolyte Order no.
51343180
Shaft length
120 mm
Shaft Diameter
12 mm
Temperature Range
0 °C – 50 °C
Connector on Sensor
MultiPin™
Connector to Meter
Flexible (detachable cable)
Sample Temperature
0°-100°C
Cable Included
No
Sample Consistency
Solid / semi-solid (measure on surface of sample)
Typical Samples
Agar plates;Paper;Textiles
Sample Volume
< 100 µL
Sensor Characteristics
Automatic Sensor Recognition;Temperature Probe;Calibration History Stored;Mechanically robust;Small volume
Minimum Sample Volume uL
5 mL
Sample Composition
Solids/semi-solids
Recommended Meters
SevenGo Duo;SevenDirect;Seven2Go;NineFocus
Recommended Meter Models
SG68;NF2300;SG23;SG78;SD23;S8;SG98;SD20;NF2000;NF2340;S2
Unique Sensor Purpose
Surface Measurements
Application Notes
Agar;Small-Volume Samples
Links to Application Notes
https://www.mt.com/global/en/home/library/applications/lab-analytical-instruments/measurement-pH-of-agar.html;https://www.mt.com/global/en/home/library/applications/lab-analytical-instruments/pH-measurement-in-small-samples.html
