pH & Electrochemistry

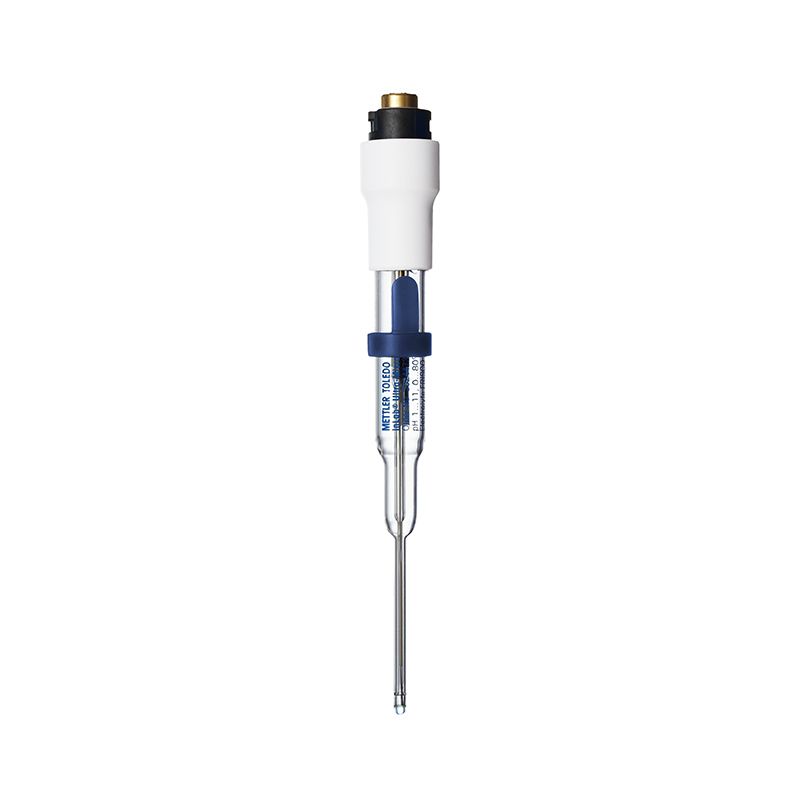

pH Sensor InLab® Ultra-Micro-ISM

Name: pH Sensor InLab® Ultra-Micro-ISM
Brand: METTLER TOLEDO

A glass-body, micro combination pH electrode with MultiPinTM head and ISM. Ideal for measuring in very small vessels such as vials, micro plates and cuvettes.

CategorypH & Electrochemistry

IndustryFood & Feed, Pharma, Petro Chemical, Testing Labs, Academia

ReferencePH-SENSOR-INLAB-ULTRA-MICRO-ISM

Request a Quote →

Specifications

Measuring range

pH 1 – 11

Type of junction

Ceramic

Shaft Material

Glass

Sensor Type

Combined electrode

Parameter

Reference System

ARGENTHAL™ with Ag+-trap

Reference electrolyte

FRISCOLYT-B®

Membrane glass

LoT

Membrane resistance (25°C)

< 700 MΩ

Intelligent Sensor Management (ISM®)

Yes

Temperature probe

Low Maintenance

Signal type

Analog

Reference electrolyte Order no.

51343180

Shaft length

40 mm

Shaft Diameter

3 mm

Temperature Range

0 °C – 80 °C

Connector on Sensor

MultiPin™

Connector to Meter

Flexible (detachable cable)

Sample Temperature

0°-100°C

Cable Included

Sample Consistency

Liquid

Sample Composition

Aqueous;Contains proteins /TRIS / sulfides (aqueous);High salt content (aqueous)

Typical Samples

TRIS buffers;Enzyme solution;Proteinaceous samples

Sample Volume

< 100 µL

Minimum sample volume µL

15 µL

Sensor Characteristics

Automatic Sensor Recognition;Chemically robust;Calibration History Stored;Small volume

Minimum Sample Volume uL

15 µL

Recommended Meters

SevenGo Duo;SevenDirect;Seven2Go

Recommended Meter Models

SG68;SG23;SG78;SD23;S8;SG98;SD20;S2

Application Notes

Small-Volume Samples

Links to Application Notes

https://www.mt.com/global/en/home/library/applications/lab-analytical-instruments/pH-measurement-in-small-samples.html

Unique Sensor Purpose

Very Small Volumes (15 - 100 µL)
