pH & Electrochemistry

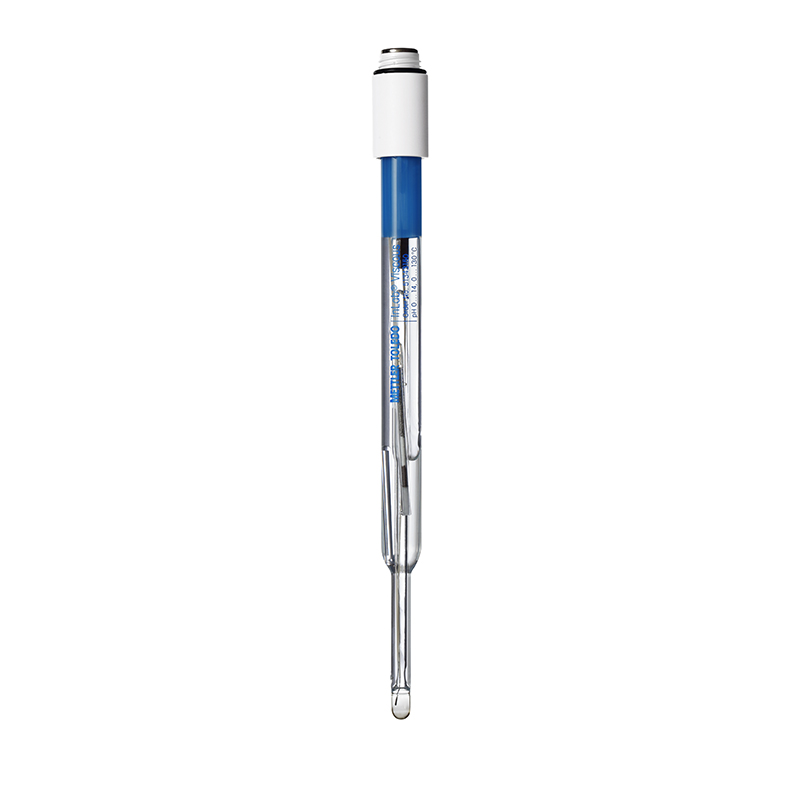

pH Sensor InLab® Viscous
A glass-body, combination pH electrode with SteadyForceTM and S7 screw head for viscous samples like cosmetics, paints and glue.
Specifications
Measuring range
pH 0 – 14
Type of junction
Ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
pH
Reference System
SteadyForce™
Reference electrolyte
FRISCOLYT-C®
Membrane glass
HA
Membrane resistance (25°C)
< 600 MΩ
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Low Maintenance
Yes
Signal type
Analog
Shaft length
40 mm
Shaft Diameter
6 mm
Temperature Range
0 °C – 130 °C
Connector on Sensor
S7
Connector to Meter
Flexible (detachable cable)
Sample Temperature
>100°C
Cable Included
No
Sample Consistency
Viscous;Emulsion
Sample Composition
Non-Aqueous
Typical Samples
Cosmetic lotions;Gel
Minimum Sample Volume uL
20 mL
Sensor Characteristics
Chemically robust;High temperature
Sample Volume
>= 20 mL
INQUIRY
Get a tailored quote for the pH Sensor InLab® Viscous.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
