pH & Electrochemistry

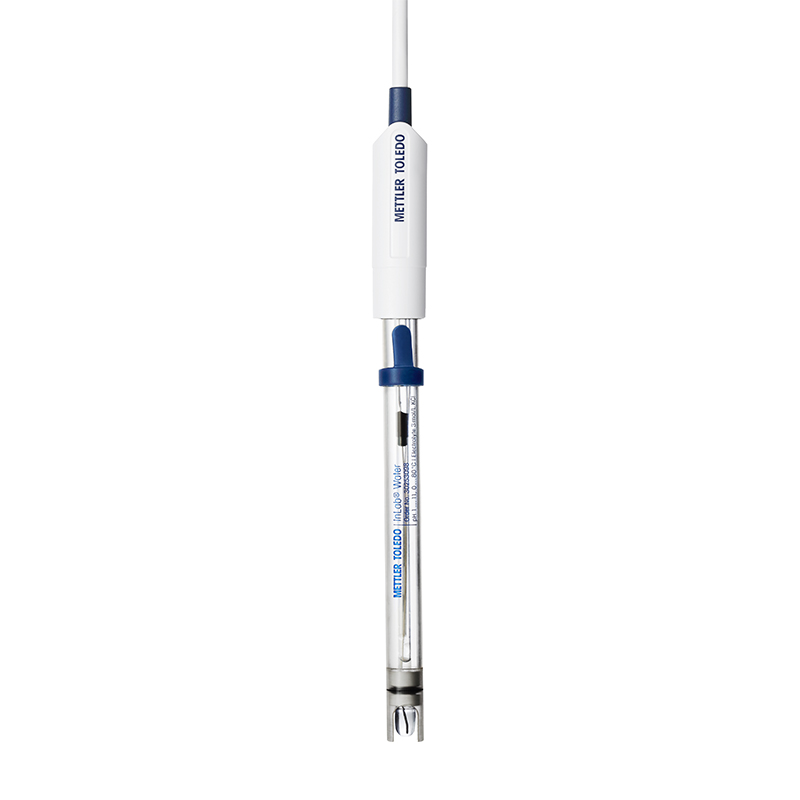

pH Sensor InLab® Water Go
A combination pH electrode with a plastic shaft, ring junction and a fixed cable. Designed for soft water like surface water or drinking water.
Specifications
Measuring range
pH 1 – 11
Type of junction
Porous PTFE
Shaft Material
PSU
Sensor Type
Combined electrode
Parameter
pH
Reference System
ARGENTHAL™ with Ag+-trap
Reference electrolyte
3 mol/L KCl
Membrane glass
LoT
Membrane resistance (25°C)
< 150 MΩ
Intelligent Sensor Management (ISM®)
No
Temperature probe
NTC 30 kΩ
Low Maintenance
No
Signal type
Analog
Reference electrolyte Order no.
51343180
Shaft length
120 mm
Shaft Diameter
12 mm
Cable {Length}
1.8 m
Temperature Range
0 °C – 80 °C
Connector on Sensor
Fixed 1.8 m cable
Connector to Meter
BNC/RCA (Cinch)
Sample Temperature
0°-100°C
Cable Included
Yes
Sample Consistency
Liquid
Sample Composition
Aqueous
Typical Samples
Surface Water;Drinking Water;Soft drinks
Minimum Sample Volume uL
20 mL
Sensor Characteristics
Temperature Probe;IP67;Mechanically robust
Sample Volume
>= 20 mL
Recommended Meters
SevenGo Duo;Seven2Go
Recommended Meter Models
SG68;SG23;SG78;S8;SG98;S2
Unique Sensor Purpose
Water
