Titration

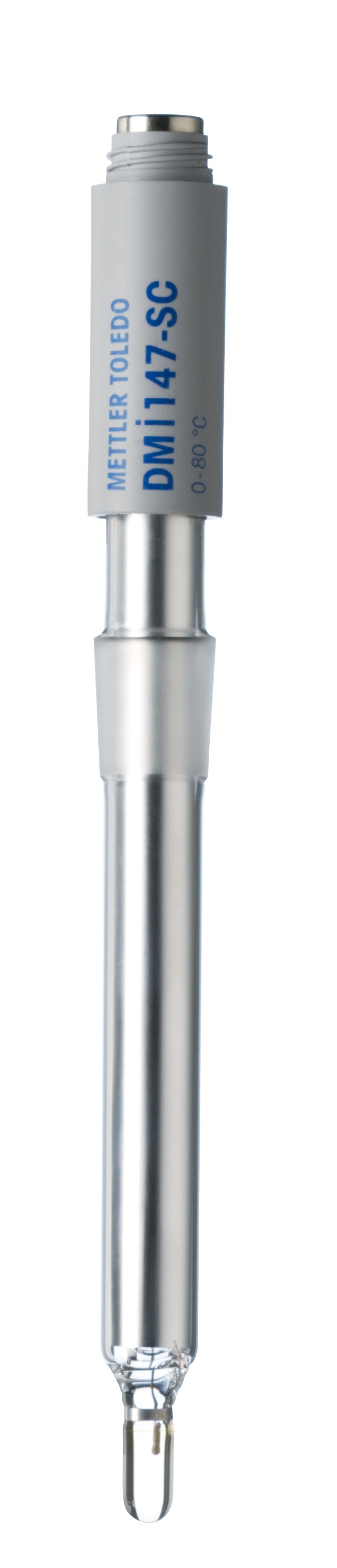

Pt-Ring Sensor DMi147-SC
Combined platinum ring electrode for redox titrations. The electrode features a junction-free bulb glass reference which cannot be blocked by precipitates.
Specifications
Connection
S12
Diaphragm
n/a
pH application range
0–14
Reference electrolyte
n/a
Reference System
pH glass membrane
Sensor element
Platinum ring
Shaft Material
Glass
Measurement Range (Voltage)
-2,000 mV – 2,000 mV
Temperature Range
32 °F – 176 °F
Temperature Range
0 °C – 80 °C
Type of Sensor
Metal Sensors
Measurement Type
Chromatometric;Potentiometric;Redox;Cerimetric;Bromatometric;Iodometric;Arsenometric
Compatible Titrators
Potentiometric Compact Titrators;Excellence Titrators
INQUIRY
Get a tailored quote for the Pt-Ring Sensor DMi147-SC.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
