Automated Reactors & Synthesis

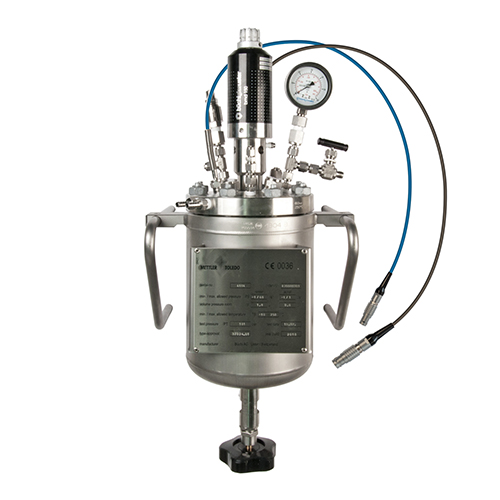

Reactor HP60-V, C22, 300°C (RC1mx)
Reactor HP60-V, C22, 300°C (RC1mx)
Specifications
Material
PTFE;Stainless steel (AISI 316);Alloy C22
Ports
3 x 1/2 inch NPT;2 x 3/8 inch NPT;3 x 1/4 inch NPT;Center M36 x 1.5
Pressure Range
Max. 60 bar rel.
Quantity
1 pcs
Inner Dimensions
196 mm
Inner Dimensions
102 mm
Nominal Volume
1.8 L
Operating Volume
0.5 L – 1.5 L
Temperature Range
-10 °C – 300 °C
INQUIRY
Get a tailored quote for the Reactor HP60-V, C22, 300°C (RC1mx).
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Pharma will respond within one business day.
