pH & Electrochemistry

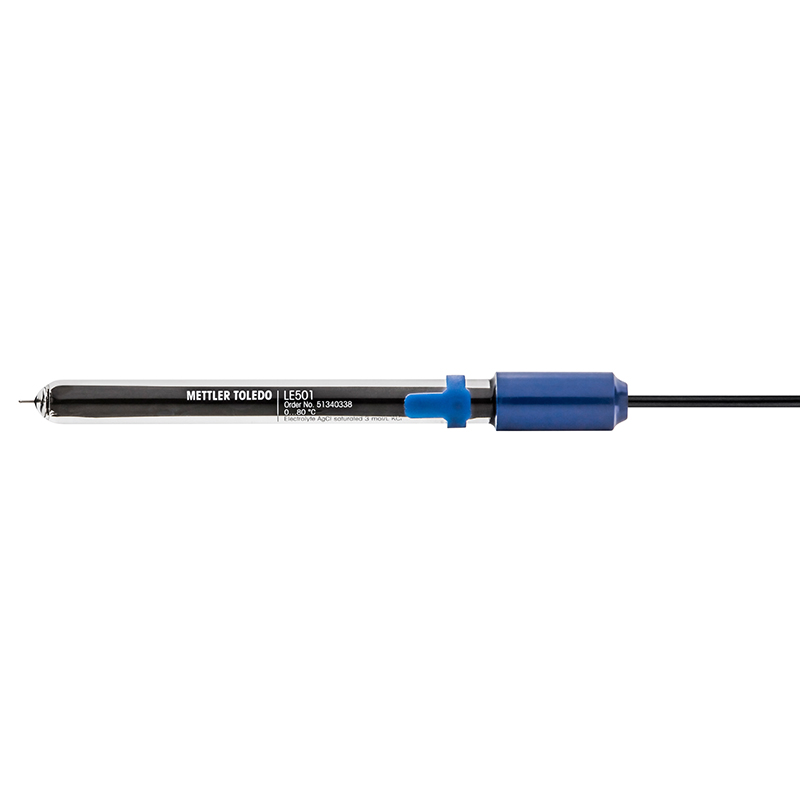

Redox electrode LE501
Glass ORP electrode with platinum pin for lab use
Specifications
Measuring range
-2000 – 2000 mV
Metal
Platinum Pin
Connector
BNC
Type of junction
Ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
Redox
Reference System
Ag/AgCl
Reference electrolyte
3 mol/L KCl AgCl saturated
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
For Portable Meter
Yes
Low Maintenance
Yes
Signal type
Analog
Sample
General Purpose
Reference electrolyte Order no.
51343180
Cable and connectors
1.0 m BNC
Shaft length
120 mm
Shaft Diameter
12 mm
Cable {Length}
1 m
Temperature Range
0 °C – 80 °C
Base Unit Temperature Range
0 °C – 80 °C
Connector on Sensor
Fixed 1 m cable
Connector to Meter
BNC
Cable Included
Yes
Sample reacts with Platinum
No
Sensor Characteristics
Chemically robust;Standard sensor
Recommended Meters
FiveEasy
Recommended Meter Models
FP20
Unique Sensor Purpose
Generalist Best Choice
