Density & Refractometry

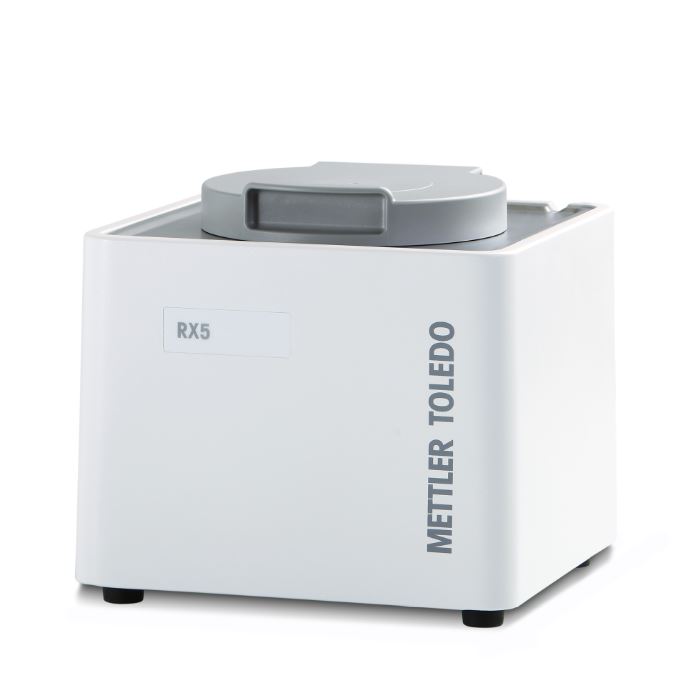

Refractive Index Cell RX5
Precise, intuitive and modular, the RX5 Refractive index cell offers fast measurements with automatic temperature control. The RX5 can be connected and controlled by an Excellence Density Meter to measure density and refractive index simultaneously.
Specifications
Measurement range nD
1.32000 - 1.58000
Repeatability nD (±)
1e-005
Measurement range Brix
0-100 % w/w
Accuracy Brix
0.014 % w/w
Measurement Scales
Refractive Index, Sugar (Brix and more), Acid/Base, Chemical, Freezing Point, Salt, Others;Up to 30 user-defined concentration tables (can be entered as tables or formulas).
Dimensions (Width x Height x Depth)
226 x 193 x 208 mm
Standard compliance
www.mt.com/dere-norms
Accuracy nD (±)
0.00002
Temperature control accuracy (±)
0.03 °C
Weight
4.8 kg
Dimensions
226 mm
Dimensions
193 mm
Dimensions
208 mm
Temperature Control Range
5 °C – 75 °C
Built-in Measurement Scales
Others;Chemicals, acids, bases and freezing point tables;Refractive Index
Compliance / Data Security
Audit Trail (requires LabX software);Data integrity (requires LabX software);21 CFR part 11 / EU Annex 11 (requires LabX software)
Funnel for Easy Sampling
No
LIMS connectivity
Yes
Main norms and standards
AOAC 969.18;AOAC 943.05;OIV MA-AS2-02;UOP 816;AOAC 932.14, Section C;ICUMSA SPS-3 (2000);ASTM D3321;Ph. Eur. 2.2.6;AOAC 983.01;AOAC 948.10;AOAC 945.102;AOAC 969.38;ASTM D4095;ASTM D1747;DIN 51423 - part 1;AOAC 905.01;AOAC 976.20;AOAC 920.141;AOAC 896.02;AOAC 898.02;ASTM D5006;AOAC 950.13;ISO 280;GBT 10786-2006;USP 831;AOAC 921.08;AOAC 970.15;AOAC 970.59;ASTM D2140;AOAC 920.78;ASTM D4542;ASTM D 1807;A.O.C.S. Official method Cc7-25;OIML R 108;ISO 8036;AOAC 983.17;OIV MA-AS312-01B;AOAC 953.16;AOAC 2000.19;AOAC 950.04;AOAC 940.09;AOAC 932.12;ASTM D524;GB/T 12143-2008;ICUMSA GS4/3 – 13 (2004);ISI 06-1e;ASTM D1218
Product Type
Benchtop refractometer
User Management
Yes
