Density & Refractometry

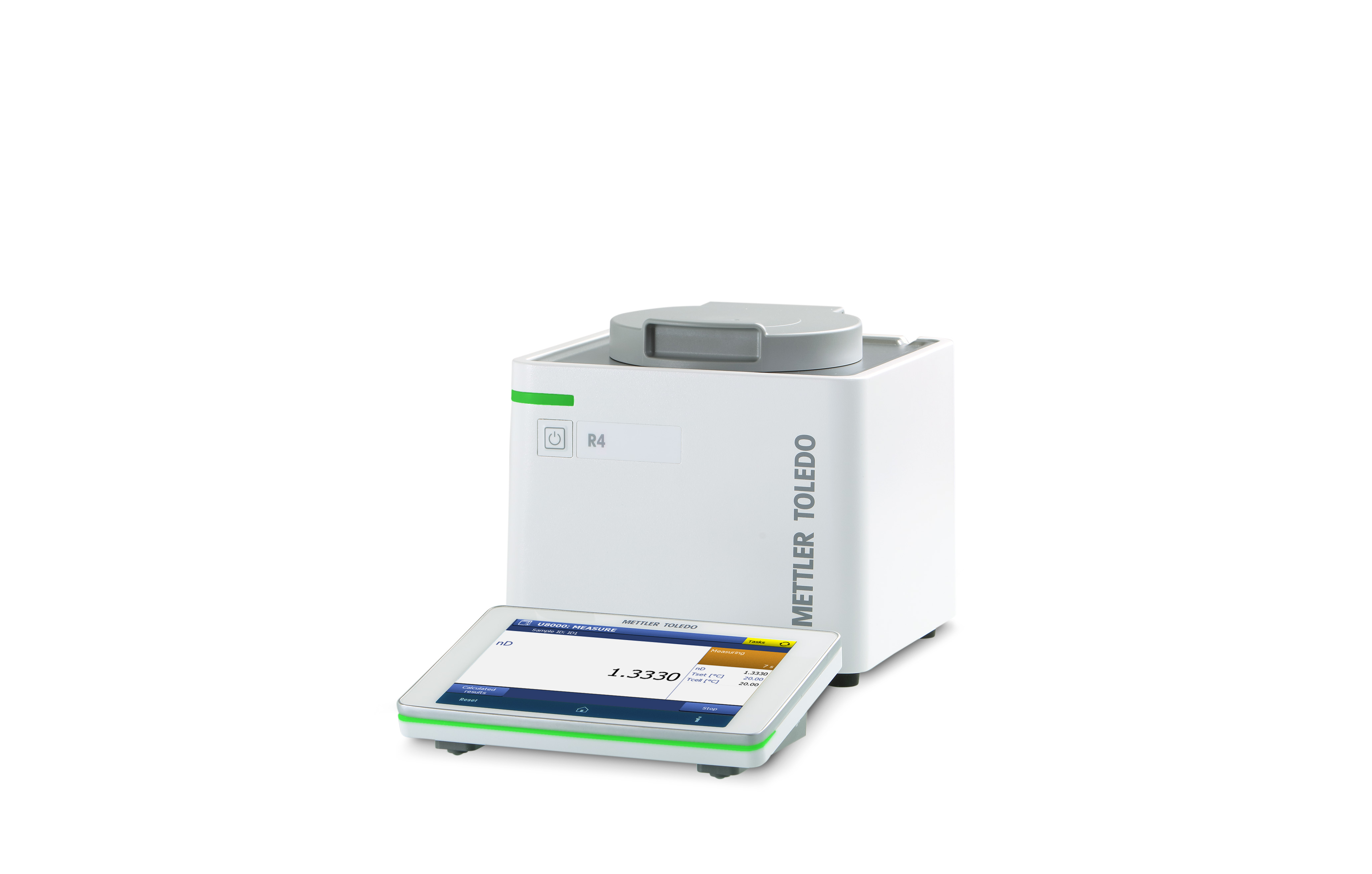

Refractometer Excellence R4
Accurate, intuitive, and modular, the Excellence R4 offers fast refractive index measurements with automatic temperature control, color-coded result limits, user management and more. Everything via an incredibly easy-to-use user interface.
Specifications
Measurement range nD
1.3200 - 1.7000
Repeatability nD (±)
5e-005
Measurement range Brix
0-100 % w/w
Accuracy Brix
0.05 % w/w
Measurement Scales
Refractive Index, Sugar (Brix and more), Acid/Base, Chemical, Freezing Point, Salt, Others;Up to 30 user-defined concentration tables (can be entered as tables or formulas).
Color-coded result identification
Yes
User Management
Yes
On-screen help texts
Yes
Barcode reader connectivity
Yes
Password Protection
Yes
Languages
English;Italian;French;Russian;Polish;Portuguese;Chinese;German;Spanish
Display / User interface
7" display with color touchscreen
Connectivity
HDMI (Terminal);USB client (PC Software);Ethernet (Network and PC Software);3 × USB host (printer, memory stick, barcode reader, hub, keyboard, mouse);RS232 (Automation units);CAN (Multiple LevelSens)
PC Software
LabX Express and Server
Dimensions (Width x Height x Depth)
226 x 193 x 208 mm
Standard compliance
www.mt.com/dere-norms
Accuracy nD (±)
0.0001
Temperature control accuracy (±)
0.1 °C
Minimum Sample Volume
0.5 mL
Weight
4.8 kg
Dimensions
226 mm
Dimensions
193 mm
Dimensions
208 mm
Temperature Control Range
5 °C – 100 °C
Built-in Measurement Scales
Others;Chemicals, acids, bases and freezing point tables;Refractive Index;Brix/Sugar tables
Compliance / Data Security
Audit Trail (requires LabX software);Data integrity (requires LabX software);21 CFR part 11 / EU Annex 11 (requires LabX software)
Funnel for Easy Sampling
No
LIMS connectivity
Yes
Main norms and standards
AOAC 969.18;AOAC 943.05;OIV MA-AS2-02;UOP 816;AOAC 932.14, Section C;ICUMSA SPS-3 (2000);ASTM D3321;Ph. Eur. 2.2.6;AOAC 983.01;AOAC 948.10;AOAC 945.102;AOAC 969.38;ASTM D4095;ASTM D1747;AOAC 905.01;AOAC 976.20;AOAC 920.141;AOAC 896.02;AOAC 898.02;ASTM D5006;AOAC 950.13;ISO 280;GBT 10786-2006;USP 831;AOAC 921.08;AOAC 970.15;AOAC 970.59;ASTM D2140;AOAC 920.78;ASTM D4542;ASTM D 1807;A.O.C.S. Official method Cc7-25;OIML R 108;AOAC 983.17;OIV MA-AS312-01B;AOAC 953.16;AOAC 2000.19;AOAC 950.04;AOAC 940.09;AOAC 932.12;ASTM D524;GB/T 12143-2008;ICUMSA GS4/3 – 13 (2004);ISI 06-1e;ASTM D1218
Minimum Sample Volume
0.50 mL
Product Type
Benchtop refractometer
