$Refractometer Excellence R5$

Density & Refractometry

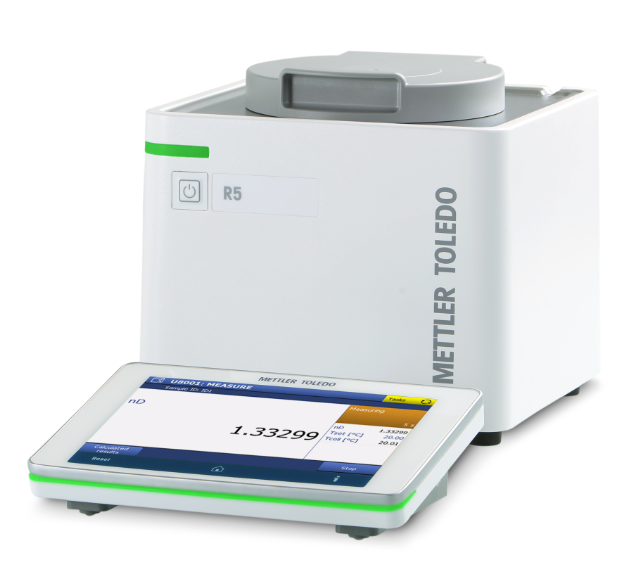

Refractometer Excellence R5

Name: Refractometer Excellence R5
Brand: METTLER TOLEDO

Accurate, intuitive and modular, the Excellence R5 offers fast refractive index measurements with automatic temperature control, color-coded result limits, user management and more. Everything via an incredibly easy-to-use user interface.

CategoryDensity & Refractometry

IndustryFood & Feed, Pharma, Petro Chemical, Testing Labs

ReferenceREFRACTOMETER-EXCELLENCE-R5

Request a Quote →

Specifications

Measurement range nD

1.32000 - 1.58000

Repeatability nD (±)

1e-005

Measurement range Brix

0-100 % w/w

Accuracy Brix

0.014 % w/w

Measurement Scales

Refractive Index, Sugar (Brix and more), Acid/Base, Chemical, Freezing Point, Salt, Others;Up to 30 user-defined concentration tables (can be entered as tables or formulas).

Color-coded result identification

Yes

User Management

Yes

On-screen help texts

Yes

Barcode reader connectivity

Yes

Password Protection

Yes

Languages

English;Italian;French;Russian;Polish;Portuguese;Chinese;German;Spanish

Display / User interface

7" display with color touchscreen

Connectivity

HDMI (Terminal);USB client (PC Software);Ethernet (Network and PC Software);3 × USB host (printer, memory stick, barcode reader, hub, keyboard, mouse);RS232 (Automation units);CAN (Multiple LevelSens)

PC Software

LabX Express and Server

Dimensions (Width x Height x Depth)

226 x 193 x 208 mm

Standard compliance

www.mt.com/dere-norms

Accuracy nD (±)

0.00002

Temperature control accuracy (±)

0.03 °C

Minimum Sample Volume

0.5 mL

Weight

4.8 kg

Dimensions

226 mm

Dimensions

193 mm

Dimensions

208 mm

Temperature Control Range

5 °C – 75 °C

Built-in Measurement Scales

Others;Chemicals, acids, bases and freezing point tables;Refractive Index;Brix/Sugar tables

Compliance / Data Security

Audit Trail (requires LabX software);Data integrity (requires LabX software);21 CFR part 11 / EU Annex 11 (requires LabX software)

Funnel for Easy Sampling

LIMS connectivity

Yes

Main norms and standards

AOAC 969.18;AOAC 943.05;OIV MA-AS2-02;UOP 816;AOAC 932.14, Section C;ICUMSA SPS-3 (2000);ASTM D3321;Ph. Eur. 2.2.6;AOAC 983.01;AOAC 948.10;AOAC 945.102;AOAC 969.38;ASTM D4095;ASTM D1747;DIN 51423 - part 1;AOAC 905.01;AOAC 976.20;AOAC 920.141;AOAC 896.02;AOAC 898.02;ASTM D5006;AOAC 950.13;ISO 280;GBT 10786-2006;USP 831;AOAC 921.08;AOAC 970.15;AOAC 970.59;ASTM D2140;AOAC 920.78;ASTM D4542;ASTM D 1807;A.O.C.S. Official method Cc7-25;OIML R 108;ISO 8036;AOAC 983.17;OIV MA-AS312-01B;AOAC 953.16;AOAC 2000.19;AOAC 950.04;AOAC 940.09;AOAC 932.12;ASTM D524;GB/T 12143-2008;ICUMSA GS4/3 – 13 (2004);ISI 06-1e;ASTM D1218

Minimum Sample Volume

0.50 mL

Product Type

Benchtop refractometer
