UV/VIS Spectroscopy

Spectrophotometer UV5Nano

Name: Spectrophotometer UV5Nano
Brand: METTLER TOLEDO

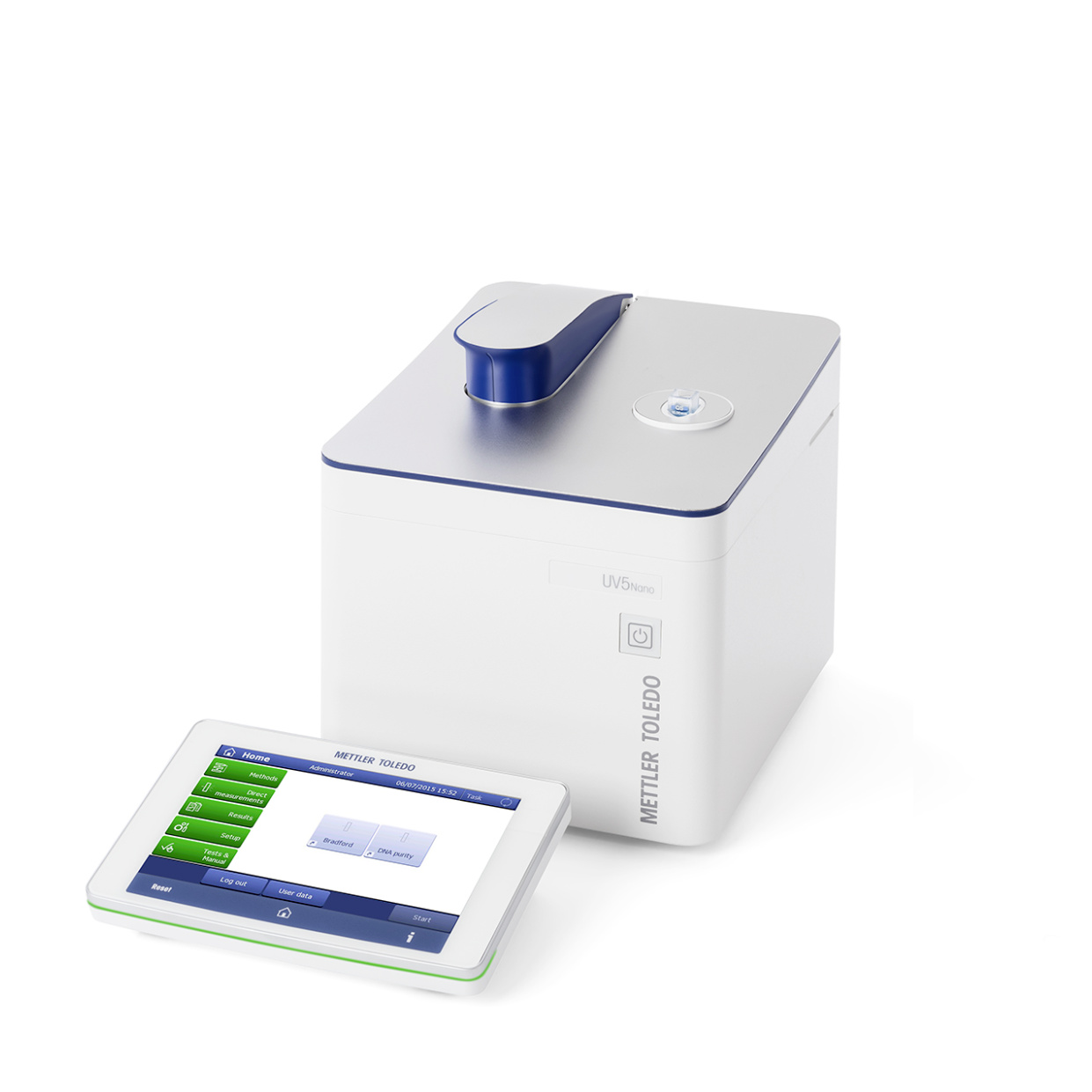

The UV5Nano UV/Vis spectrophotometer enables concentration and purity determination of nucleic acids and protein samples down to 1 μL. Optional automation and 21 CFR part 11 compliance meet the needs of life science and biopharma labs.

CategoryUV/VIS Spectroscopy

IndustryFood & Feed, Pharma, Petro Chemical, Testing Labs, Academia

ReferenceSPECTROPHOTOMETER-UV5NANO

Request a Quote →

Specifications

Photometric accuracy (K2Cr2O7)

±0.006 A

Wavelength accuracy

±0.9 nm

Path length

0.1mm;10 mm;1.0mm

Options

Handheld barcode scanner;Printer USB-P25;FillPalMini;LabX PC Software

Resolution (Toluene in hexane)

>1.7

Stray light (KCl, 198nm)

>1.7

Pharmacopeia Compliant

Max. number of methods

User Identification

yes

Languages

English;Italian;French;Russian;Portuguese;Chinese;German;Spanish

Display

7 inch QVGA Color TFT touch sensitive screen

Displayed Resolution

800x400

Terminal resolution

800x400

Shortcuts per user

Minimal Scan time

1 s

Dimensions

10.04 in

Dimensions

255 mm

Dimensions

8.54 in

Dimensions

217 mm

Dimensions

8.19 in

Dimensions

208 mm

Weight (incl. Terminal)

7.2 kg

Wavelength range

190 nm - 1,100 nm

Compatibility with LabX Software

Yes

Cuvette Changer

Application

Micro Volume;Color;Bio;Scan;Quant

Connectivity USB Interface

Yes

Light Source

Xenon flash lamp

Optics

Array

Product Line

UV/VIS Excellence
