Transport & Logistics

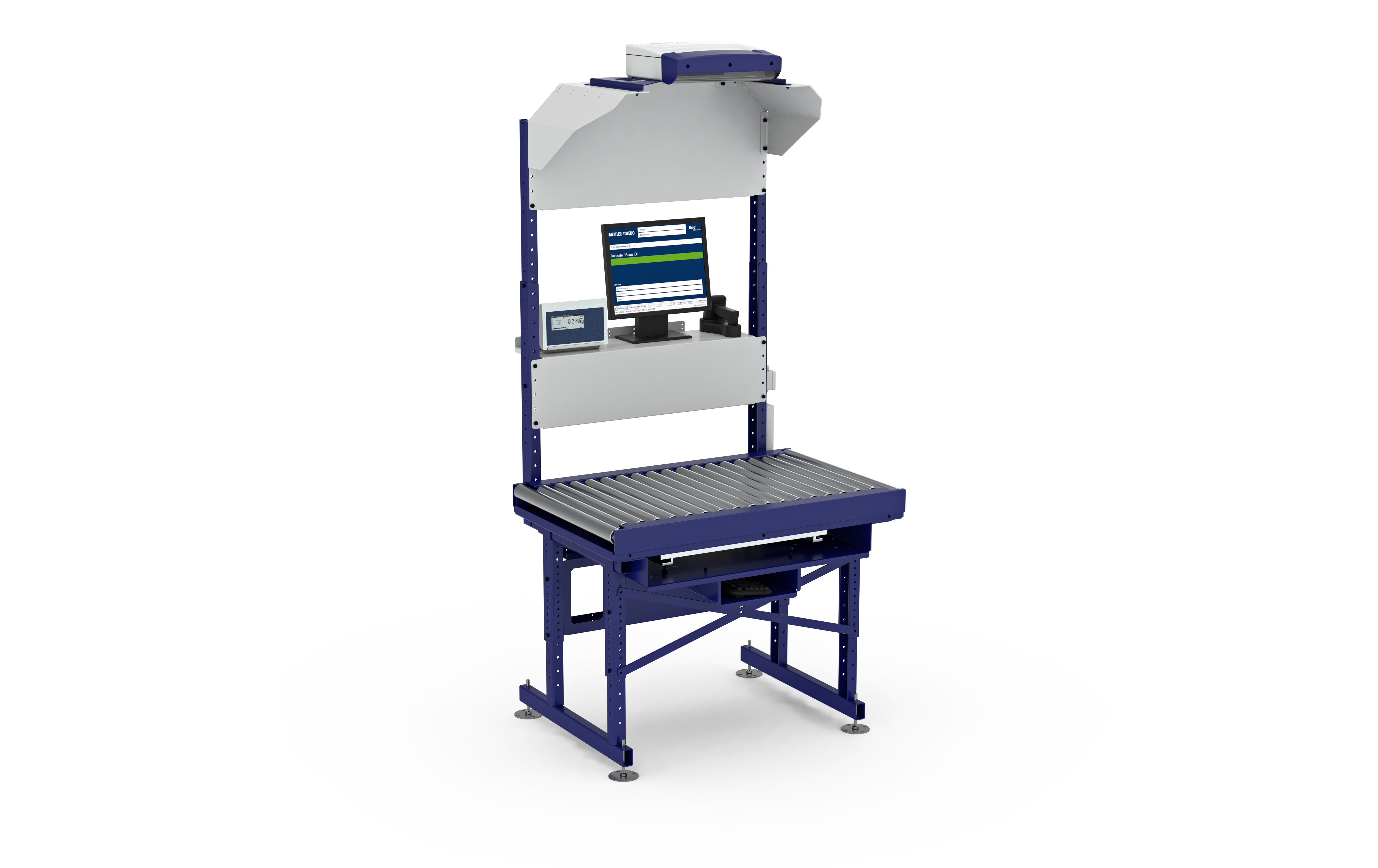

System TLD850 CSN810 Upgrade kit
The TLD850 OPRI Kit upgrades the CSN810 to best-in-class static dimensioning performance on cuboidal and known irregular shapes. It is provided as an efficient, robust solution for revenue recovery, costing, invoicing and warehouse management.
Specifications
Dimensional accuracy (LxWxH)
MID: ± 5x5x2 mm, NTEP: ± 0.2x0.2x0.1 in, MC: ± 0.2x0.2x0.1 in
Max. LFT Size (LxWxH)
MID: 1000x600x840 mm, NTEP: 45x30x28 in, MC: 45x30x28 in
Min. LFT Size (LxWxH)
MID: 50x50x20 mm, NTEP: 2.4x2.4x1.2 in, MC: 2.4x2.4x1.2 in
Throughput
Up to 450 parcels/hr
Object shape
Cuboidal objects and objects of known shape
Object surface
Most surfaces, including black, shiny and reflective materials
Operating Temperature
MID: -10-+40°C, NTEP: 14-104°F
Dimensioning Method
Static
Laser
Class II (2)
Light Source
Laser diode, red, wavelength 660 nm
OIML
R129 Compliant
Orientation
Most stable surface down within defined field-of-view
INQUIRY
Get a tailored quote for the System TLD850 CSN810 Upgrade kit.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to your sector will respond within one business day.
