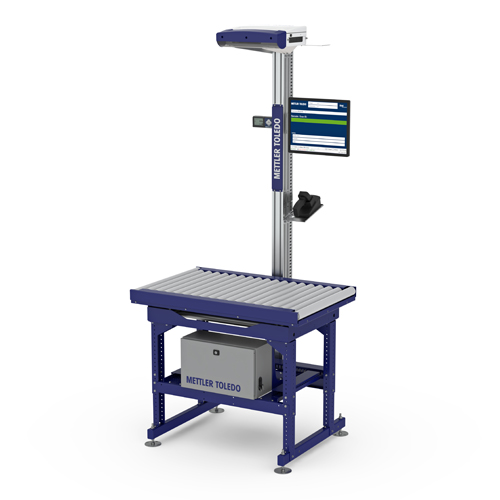

System TLD850 Roller Top Base Kit

Name: System TLD850 Roller Top Base Kit
Brand: METTLER TOLEDO

The TLD850 combines best-in-class static dimensioning performance on cuboidal and known irregular shapes. It is provided as an efficient, robust solution for revenue recovery, costing, invoicing and warehouse management.

CategoryTransport & Logistics

Industry

ReferenceSYSTEM-TLD850-ROLLER-TOP-BASE-KIT

Request a Quote →

Specifications

Throughput

Up to 450 parcels/hr

Operating Temperature

MID: -10-+40°C, NTEP: 14-104°F

Laser

Class II (2)

Dimensioning Method

Static

Light Source

Laser diode, red, wavelength 660 nm

OIML

R129 Compliant

Object surface

Most surfaces, including black, shiny and reflective materials

Orientation

Most stable surface down within defined field-of-view

Dimensional accuracy (LxWxH)

MID: ± 5x5x2 mm, NTEP: ± 0.2x0.2x0.1 in, MC: ± 0.2x0.2x0.1 in

Min. LFT Size (LxWxH)

MID: 50x50x20 mm, NTEP: 2.4x2.4x1.2 in, MC: 2.4x2.4x1.2 in

Object shape

Cuboidal objects and objects of known shape

Max. LFT Size (LxWxH)

MID: 1000x600x840 mm, NTEP: 40x24x33 in, MC: 40x24x33 in

INQUIRY

Get a tailored quote for the System TLD850 Roller Top Base Kit.

Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to your sector will respond within one business day.
