Thermal Analysis

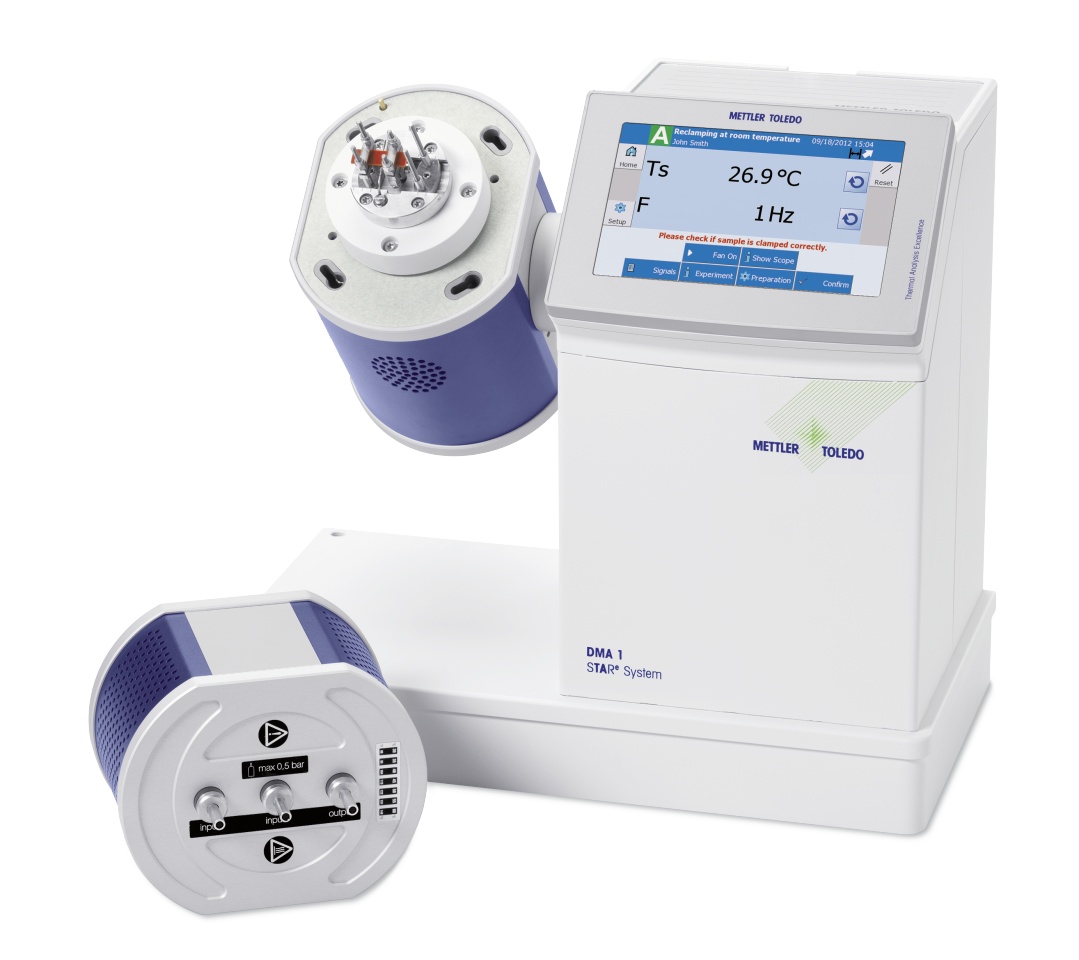

Thermal Analysis System DMA 1
The DMA 1 has a unique rotatable measuring head that allows measurements in all deformation modes, even in liquids or at defined relative humidity levels.
Specifications
Stiffness Range {text}
50 N/m – 10^5 N/m
Displacement Range (±)
1 mm
Force Range
0.001 N – 10 N
Temperature Range
-190 °C – 600 °C
Tan Delta Range
0.0001 – 50
Technique
Dynamic Mechanical Analysis (DMA)
Options
Sorption;Immersion
Sensor Output
Deformation;Modulus;Loss Factor (tan delta)
Temperature accuracy (±)
0.75 K
Temp. Range {text}
-190 °C - 600 °C
Frequency Range
0.001 to 300 Hz
Applications
Glass Transition;Crystallization
INQUIRY
Get a tailored quote for the Thermal Analysis System DMA 1.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Pharma will respond within one business day.
