Thermal Analysis

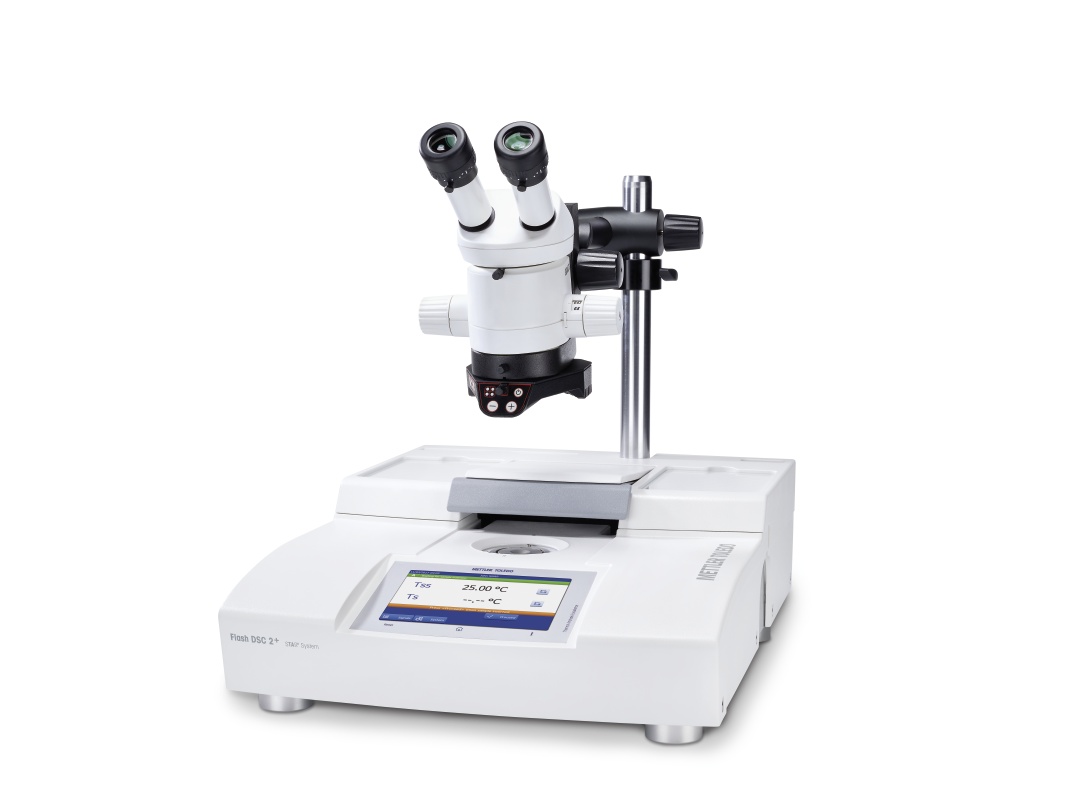

Thermal Analysis System Flash DSC 2+
The heart of the Flash DSC 2+ is the MEMS chip sensor that enable extremely high heating and cooling rate to investigate crystallization processes.
Specifications
Data Sampling
Max. 10000 data pts/sec
Sensor Types
UFH 1 (high-temperature) or UFS 1 (standard)
Signal Time Constant
Approx. 0.2 ms (UFH 1), approx. 1 ms (USF 1)
Temperature Range
-95 °C – 1,000 °C
Cooling Rate (/min)
6 K – 2,400,000 K
Heating Rate (/min)
6 K – 3,000,000 K
Technique
Fast Scanning Calorimeter;Differential Scanning Calorimetry (DSC)
Sensor Output
Heat Flow
Options
Microscopy
Applications
Glass Transition;Heat Capacity (cp);Crystallization
