Titration

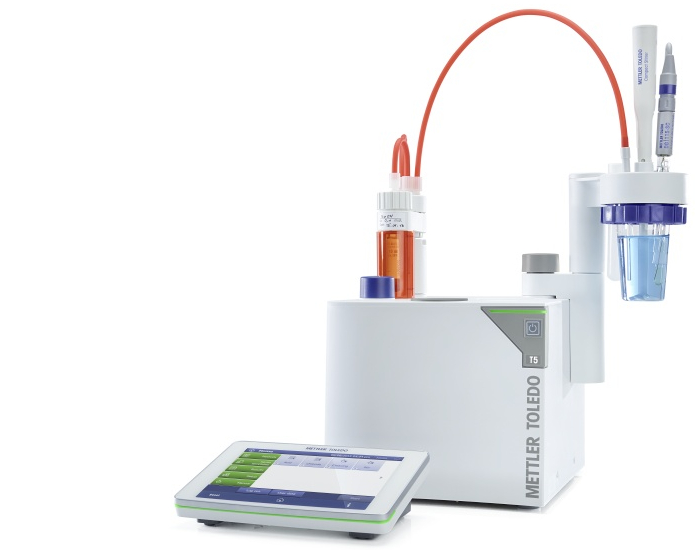

Titrator Excellence T5
The T5 Excellence titrator delivers full flexibility for both potentiometric and Karl Fischer applications. Expandable from 1 to 4 total burettes to grow with advanced needs. Supports InMotion automation for high throughput testing.
Specifications
Additional Burette Drives (Optional)
3 max. (1 for titration, 2 for dosing only)
Method Functions per Method
15 max.
LabX Software
Express and Server (not included)
Optional Extra Sensor Boards
None
Automation Option(s)
InMotion;Rondolino
Application Type
Potentiometric;Karl Fischer (Coulometric);Karl Fischer (Volumetric)
Barcode Reader Connection
Yes (USB)
Drying Oven Option
DO308 (manual)
End Point Titration
Yes
EQP Titration
Yes
Generator Cell
Diaphragm optional
If…Then Conditions
No
Karl Fischer Titration
Yes
Max. number of methods
150
One Click® User Interface
Yes
Parallel Titration
No
Plug & Play Features
Burettes and sensors
Printer Connection
Yes (USB)
Solvent Manager Option
Yes
Terminal
Color touch screen with StatusLight
Upgradeability
No
User rights management
Fully flexible role definitions
User-Defined Calculations
Yes
Languages
Chinese, English, French, German, Italian, Korean, Polish, Portuguese, Russian, Spanish
Predefined methods
60
Samples per Analysis (Max.)
303
Shortcuts per user
24
Task List (Max.)
10
Tasks Running Simultaneously (Max.)
0
Hot Plug & Play
Yes
Measurement Type
Chromatometric;Amperometric indication;Diazotitration;Redox;Complexometry;Conductometric;Thermometric;Iodometric;Direct measurement (Ion Selective);Multiple Standard Addition;Potentiometric;Precipitation;Voltametric indication;Single- & Two- Phase (surfactants);Photometric;Cerimetric;Bromatometric;Acid/Base;Arsenometric
Flexibility and Modularity
Automation;Diaphragm (KF);KF Upgrade Options;PC Software;OneClick User Interface;User Defined Calculations;Preinstalled Methods;SmartSample;Additional Burettes;Plug and Play Accessories;Sample Weight Transfer;SmartChemicals;Solvent Manager;User Management
PC Software
LabX® PC Software
Compliance and Data Security
Password Protection;21 CFR Part 11, EudraLex, Volume 4, Annex 11 (With LabX Software);User Management (fully configurable)
Connectivity and Software
LabX Software;Network Export;USB Export
