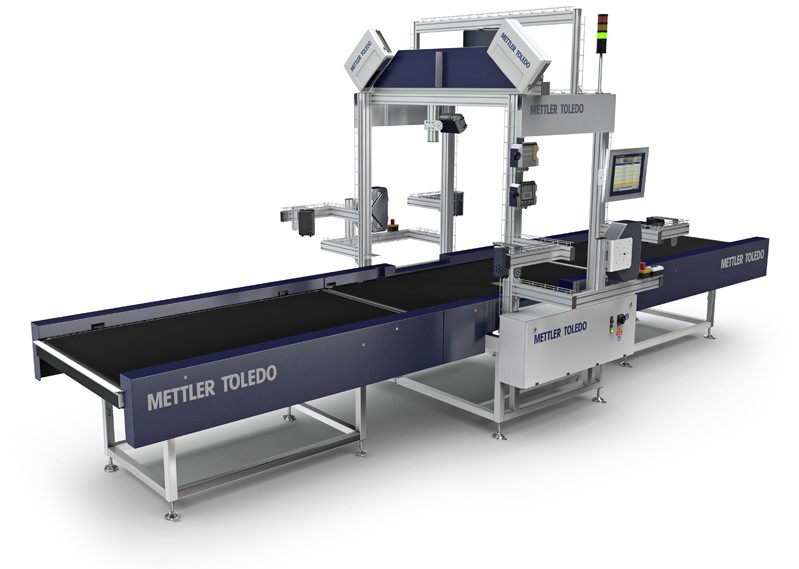

TLX MultiCapture™ Advanced

Name: TLX MultiCapture™ Advanced
Brand: METTLER TOLEDO

The TLX system offers high-speed advanced sorting capabilities, maximizing revenue recovery. Accurately handle letters, flats, small items and big parcels, providing a complete data profile with dimensions, weight and identification on most objects.

CategoryTransport & Logistics

Industry

ReferenceTLX-MULTICAPTURETM-ADVANCED

Request a Quote →

Specifications

Dimensioning Accuracy {Garvens}

± 5x5x2 mm; ± 0.2x0.2x0.1 in

Maximum Size (L x W x H) {Garvens}

2400 x 1100 x 900 mm (94 x 43 x 36 in)

Minimum Size (L x W x H) {Garvens}

150x50x20 mm; 6x2x1 in

Operational Temperature {Garvens}

0-40°C; 32-104°F

Voltage {Garvens}

3 x 400 VAC + N or 1 x 230 VAC + N

Capacity {text}

Up to 80 kg; Up to 176 lbs

Resolution {text}

From ±10 g*, ± 20 g, ± 50 g

Belt Speed

< 120 m/min; < 394 ft/min

Conveyor Length

1200 mm, 1500 mm, 2000 mm, 2500 mm; 47 in, 59 in, 78 in, 98 in

Conveyor Width

900 mm, 1100 mm; 35 in, 43 in

Dynamic Weighing

Yes

Throughput

Up to 6000 parcels/hr

Legal for Trade

MID, NTEP, MC, OIML

Interfaces

FTP

Object surface

Most surfaces, including black, shiny and reflective materials

Object shape

Cuboidals and irregular shapes

Conveyor Types

Standard flat conveyor

Laser

Class II (2)

Dimensioning Method

Dynamic

Light Source

Laser diode, red, wavelength 660 nm

Flow

Singulated flow
