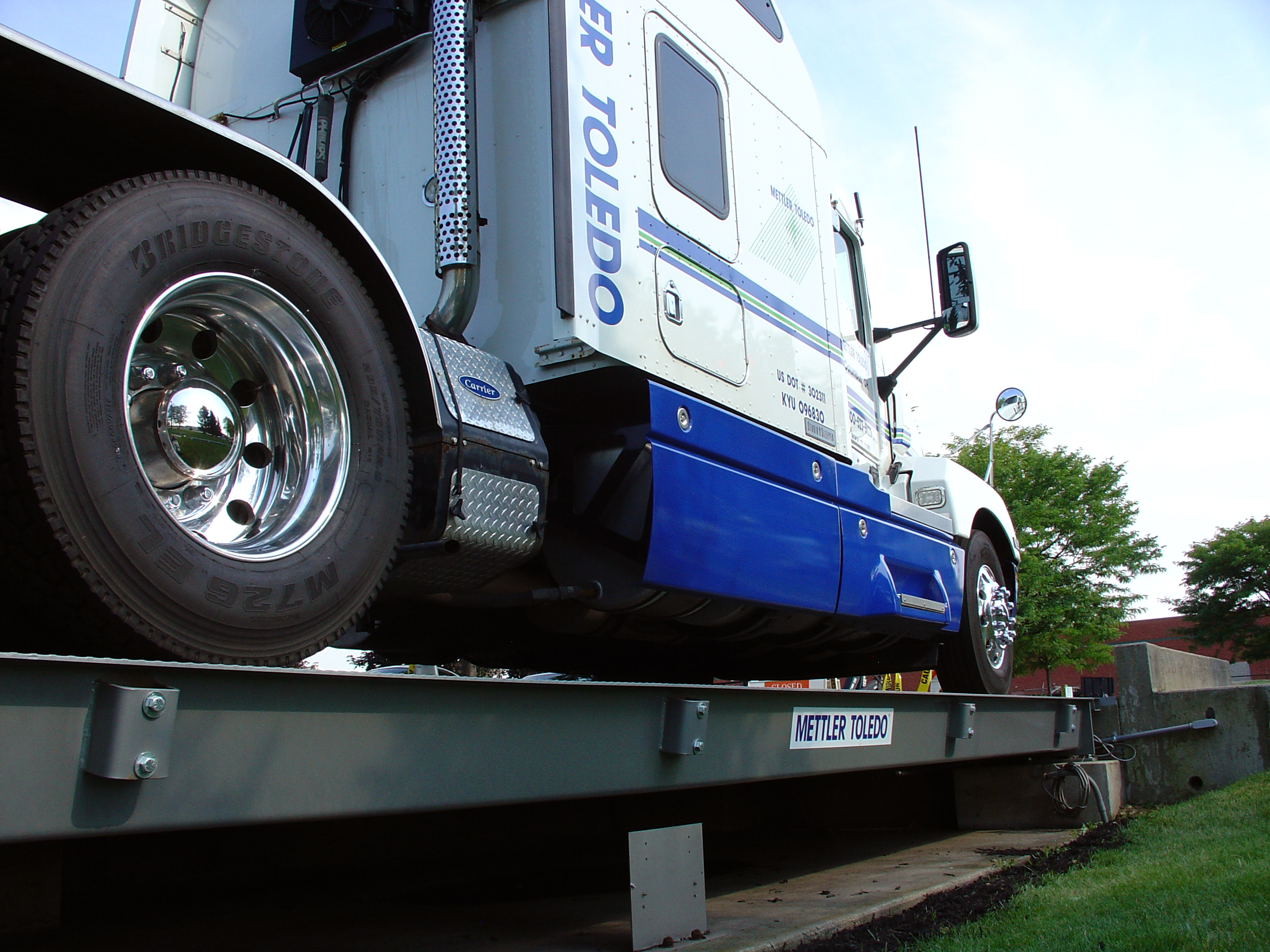

Truck Scale VTS231 Standard

50t SS POWERCELL PDX

DataBridge SS or DataBridge MS vehicle scale management software;Locating tools;IND246 PDX, IND560PDX or IND780 terminal;Remote Display;Home run cable

Measurement Canada Approval #AM-4900;NTEP COC # 93-108A6 temperature code: T4;Hazardous Area: Division 2 / Zone 2/22 for Powercell® PDX® with IND780

Steel

Manholes;Riser Base Plates;Side rails;Grain Dump Through;9’-10” or 11’-10” width deck;Side rail mounting brackets;Multi-Axle Scale Configurations;Temporary Frame

3 sets of drawings (additional dwg sets or PE stamp extra);Steel Deck Modules with Debris Guards;3 in minimum clearance under scale;Base plates, installation KOP, and anchor bolts;IP68, IP69k submersible;110,000 lb (50 t) POWERCELL PDX load cell;10’ and 11’ width decks;100,000 lb Concentrated Load Capacity (CLC);Factory assembled module(s);Strikeshield™ Lightning Protection System;14.5 in profile, top of deck to bottom of base plate;Above ground or pit installation;Five (5) year NO RISK Guarantee;Module Masher tested > 2,000,000 cycles with 80k lbs on dual tandem axle tire pattern

Side Rails;Manholes;Riser Base Plates;Grain Dump Through;9’-10” or 11’-10” width deck;Side rail mounting brackets;Multi-Axle Scale Configurations;Temporary Frame

100,000 lb

200,000 lb
