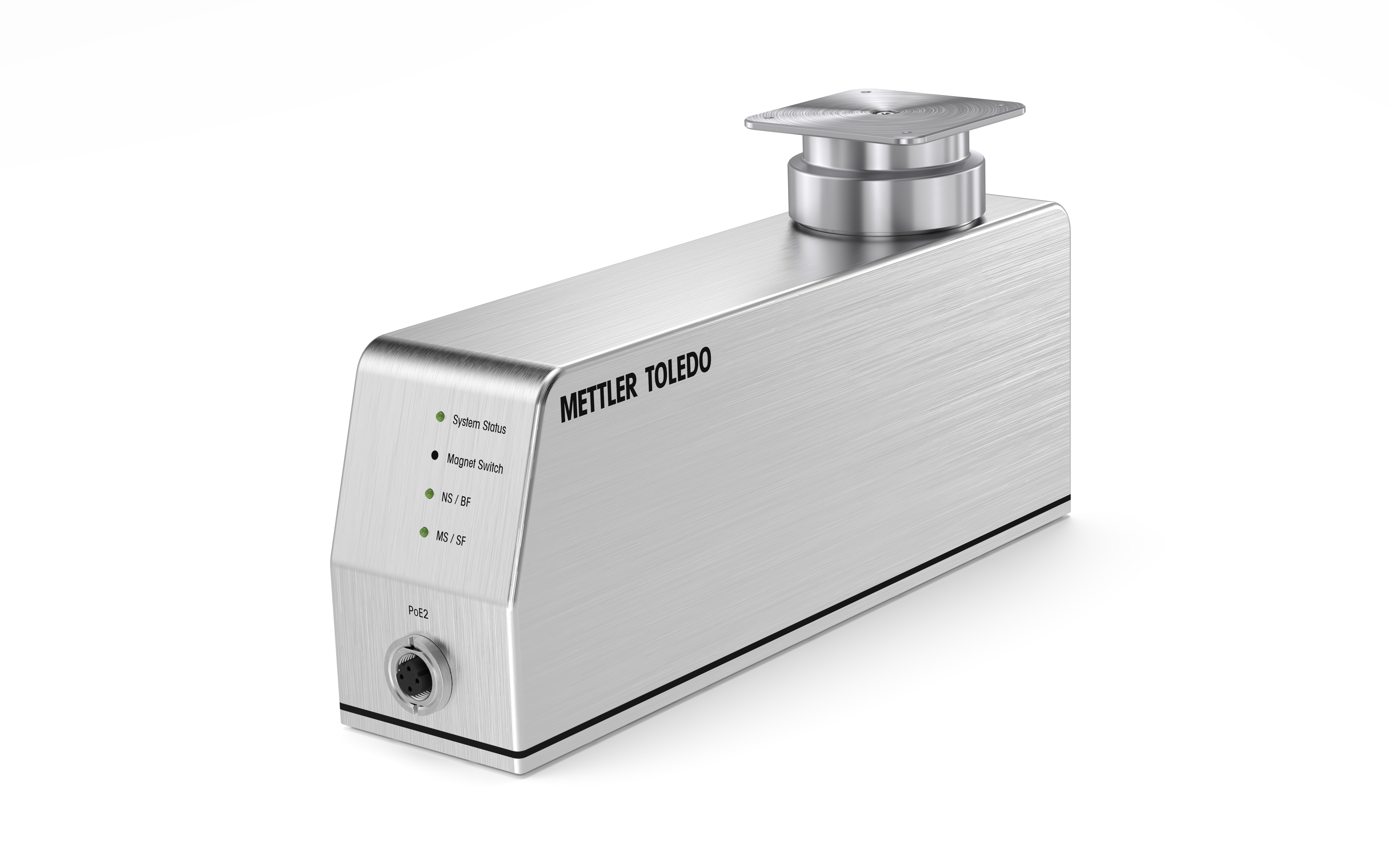

Weigh module SPE2003-C
The SPE weigh modules combine a fortified design with high-precision weighing performance and convenient modularity.
Specifications
Interfaces
PROFINET;TCP/IP;EtherNet/IP
Protection Rating
IP54;IP66
Product Line
SPE
Internal Adjustment
Yes
Internal Electronics
Yes
Legal for Trade
No
Washdown
Optional
Power Supply
Power over Ethernet
Maximum Capacity
2.1 kg
Readability
0.001 g
Repeatability (sd) @ nominal load
0.0013 g
Dimensions
59 mm
Dimensions
244.5 mm
Dimensions
122 mm
Maximum Preload
1,000 g
Interface update rate (max)
122 Hz;488 Hz
Adjustment
Internal
Repeatability, typical
0.8 mg
Alpha (Fine range)
0.00179629 g
Beta (Fine range)
0 g
INQUIRY
Get a tailored quote for the Weigh module SPE2003-C.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
