Load Cells & Weigh Modules

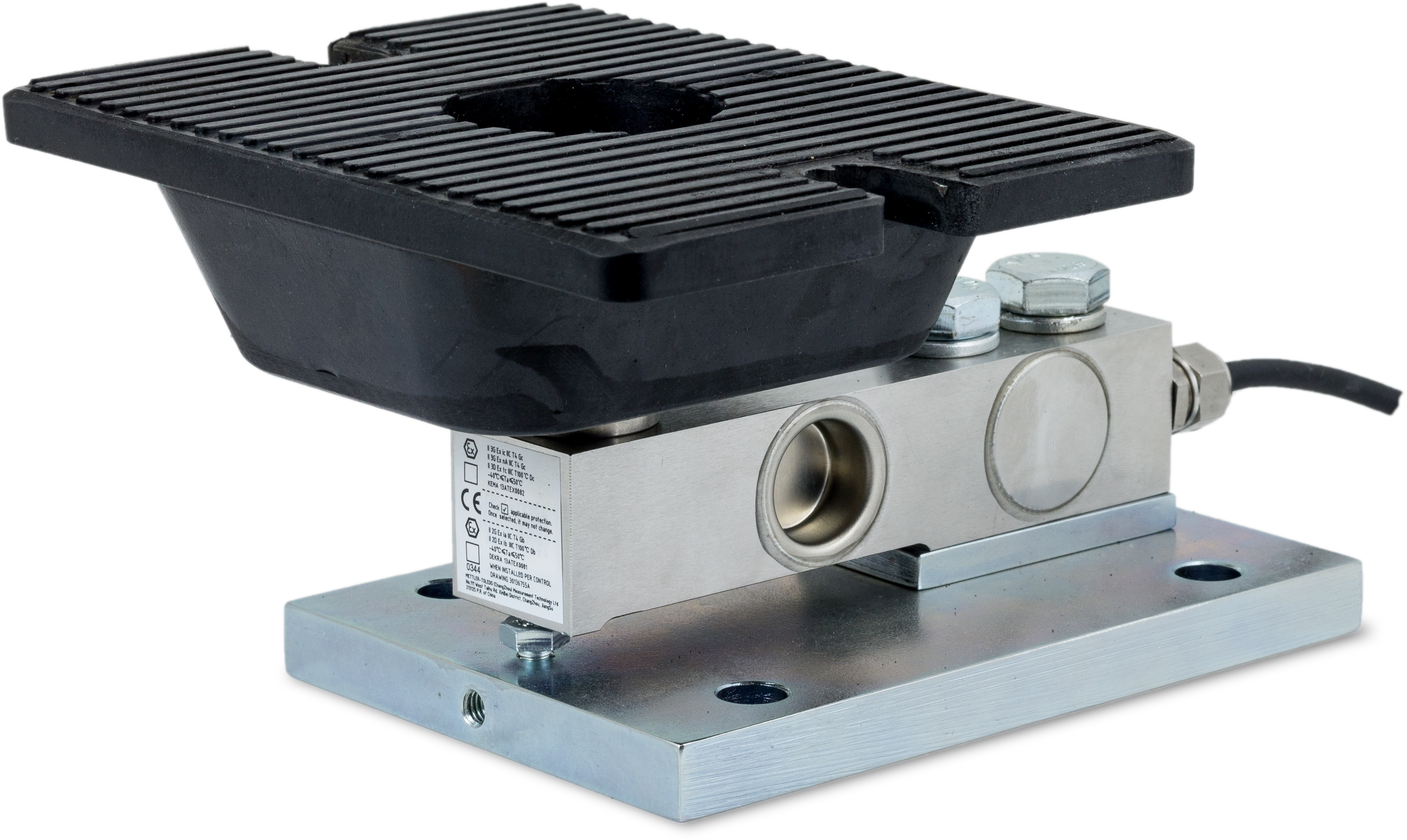

Weigh Module SWB220 SS 2.5K
SWB220 Weigh Modules are suitable for general purpose static weighing of OEM machinery, conveyors, tanks and hoppers with limited lateral movement.
Specifications
Material
304 Stainless steel
Metrology
OIML C3, NTEP III 5M
Load Cell
SLB515
Hazardous Approval
ATEX, FM, cFM
Protection Rating
IP68/69k
Maximum Capacity
2,500 lb
Maximum Capacity
1,100 kg;2,500 lb
Cable {Length}
5 m
Cable {Length}
16.4 ft
Criticality
Standard
Environment / Material
Wash-down / Stainless Steel
Accuracy
Standard
INQUIRY
Get a tailored quote for the Weigh Module SWB220 SS 2.5K.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
