Load Cells & Weigh Modules

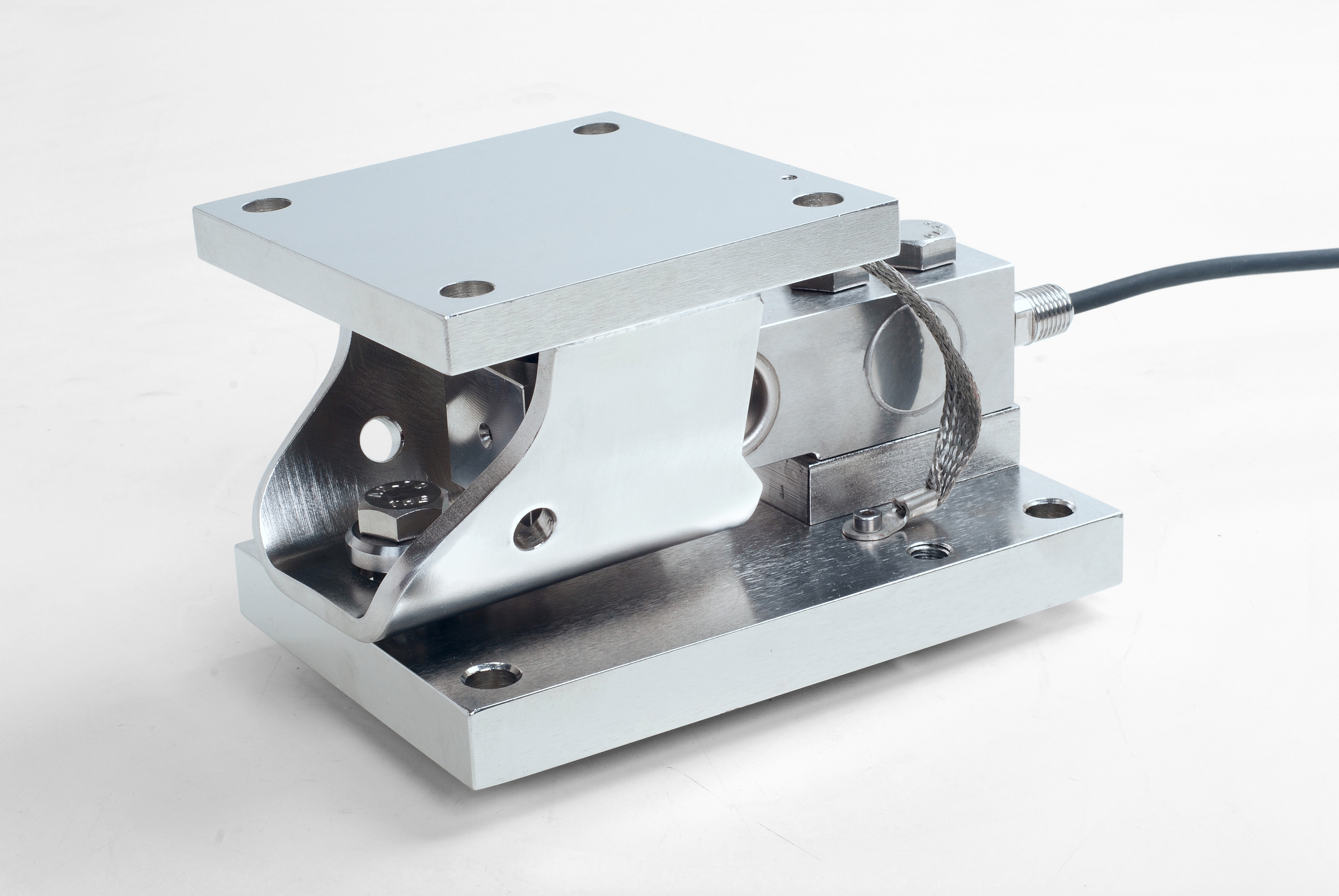

Weigh Module SWB505 CS 1.1T/2.5K C6
Weigh Module SWB505 MultiMount Carbon Steel 1.1t/2.5k C6
Specifications
Material
Carbon Steel;Zinc plated steel
Metrology
OIML C6;NTEP III 10,000d
Load Cell
0745A;5m (16.6ft) cable
Hazardous Approval
FM;ATEX;cFM
Protection Rating
IP68 NEMA 6/6P
Maximum Capacity
2,500 lb
Maximum Capacity
1,100 kg
Module Size
2
Environment / Material
Normal / Carbon Steel
Criticality
Standard
Accuracy
High
INQUIRY
Get a tailored quote for the Weigh Module SWB505 CS 1.1T/2.5K C6.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
