Specifications
Material
Mild Steel galvanized
Metrology
OIML C3, NTEP IIIL 10,000
Load Cell
0782/GD, 13 m cable
Hazardous Approval
FM;ATEX
Protection Rating
IP68/69k
Maximum Capacity
220,000 lb
Maximum Capacity
100,000 kg
Module Size
3
Environment / Material
Normal / Carbon Steel
Criticality
Standard
Accuracy
Standard
INQUIRY

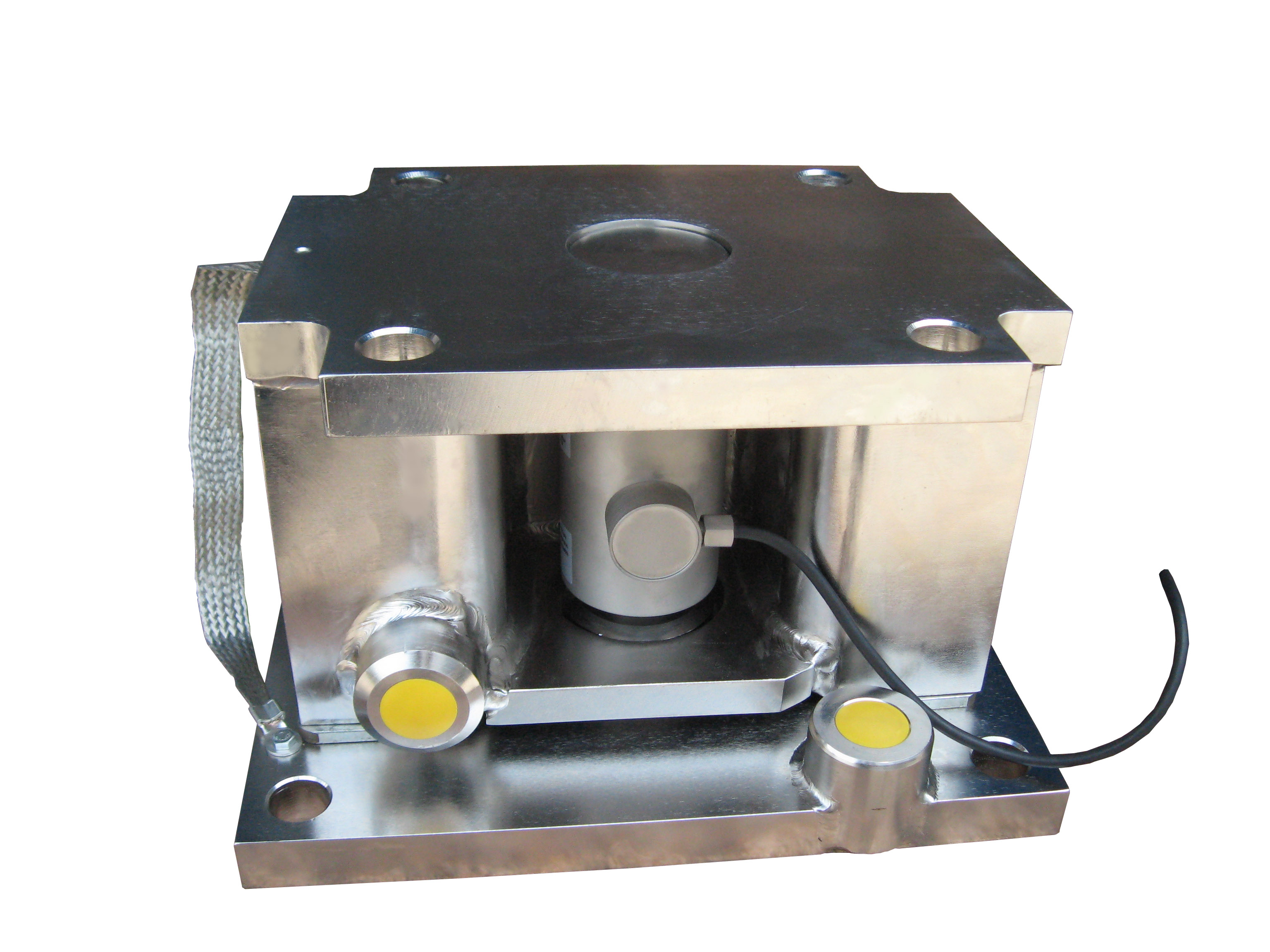

Get a tailored quote for the Weigh Module SWC515 CS 100T.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
· Load Cells & Weigh ModulesWeigh Module SWC515 CS 100T
