Specifications
Protection Rating
IP54
Maximum Capacity
1.22 kg
Dimensions
268 mm
Dimensions
59 mm
Dimensions
126 mm
Readability
0.001 g
Interfaces
RS422;RS232
Internal Adjustment
Yes
Internal Electronics
Yes
Legal for Trade
No
Washdown
No
Power Supply
10 to 29 V DC
Repeatability (sd) @ nominal load
0.001 g
Maximum Preload
150 g
Interface update rate (max)
92 Hz
Product Line
WMS
INQUIRY
Get a tailored quote for the Weigh Module WMS1203C-L/01.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.

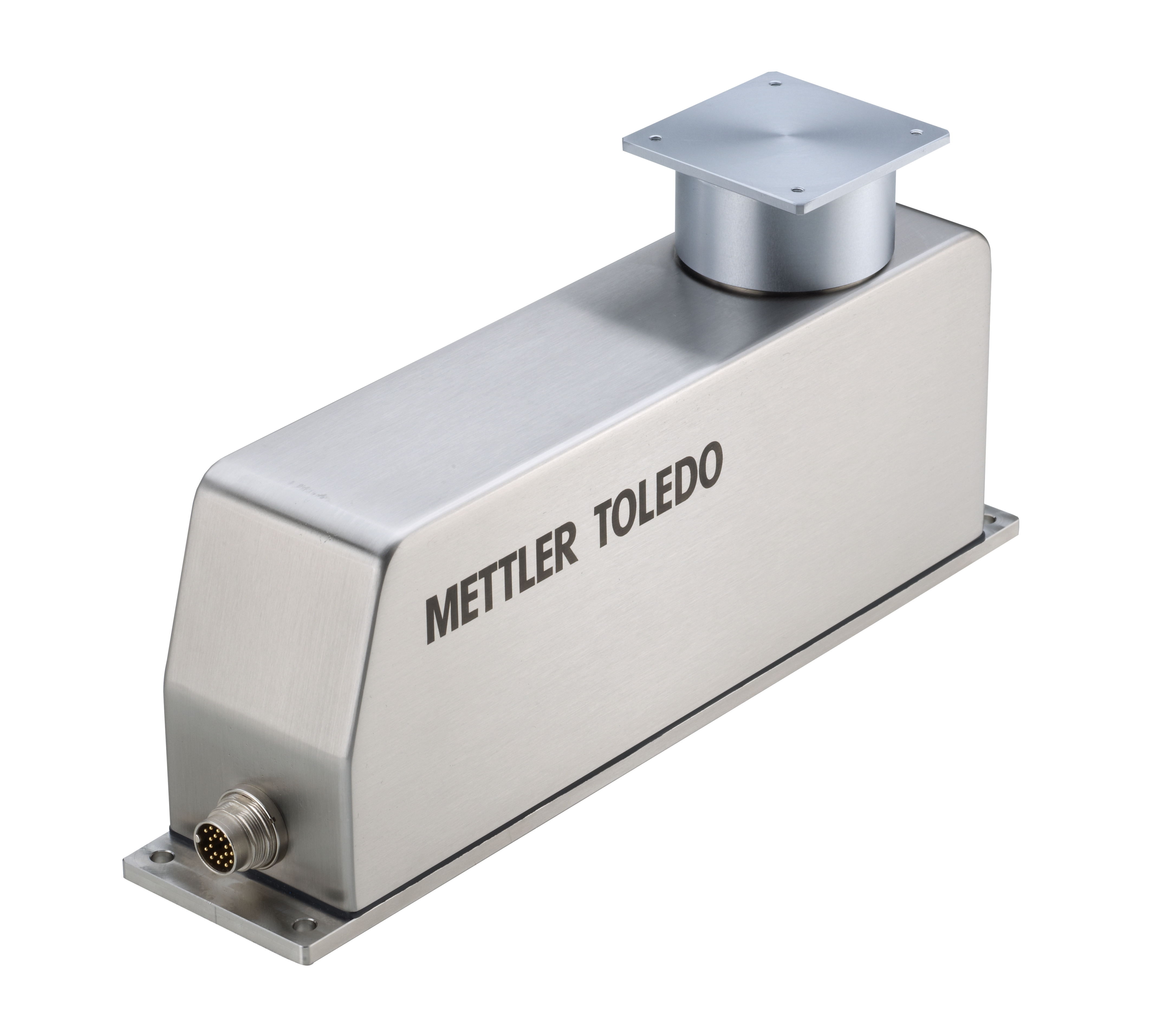

· Load Cells & Weigh ModulesWeigh Module WMS1203C-L/01
