Specifications
Protection Rating
IP40;IP30;IP45
Maximum Capacity
111 g;220 g
Readability
0.01 mg;0.1 mg
Interfaces
Ethernet Option;RS232
Internal Adjustment
Yes
Internal Electronics
Yes
Legal for Trade
No
Washdown
No
Power Supply
12 V DC
Repeatability (sd) @ nominal load
0.07 mg
Dimensions
127 mm
Dimensions
213 mm
Dimensions
70 mm
Maximum Preload
78 g
Interface update rate (max)
92 Hz;23 Hz
Product Line
WXS
Adjustment
Internal
Repeatability, typical
0.064 mg
Alpha (Fine range)
0.00012826 g
Beta (Fine range)
0 g
Alpha (Coarse range)
0.00015182 g
Beta (Coarse range)
0 g
INQUIRY

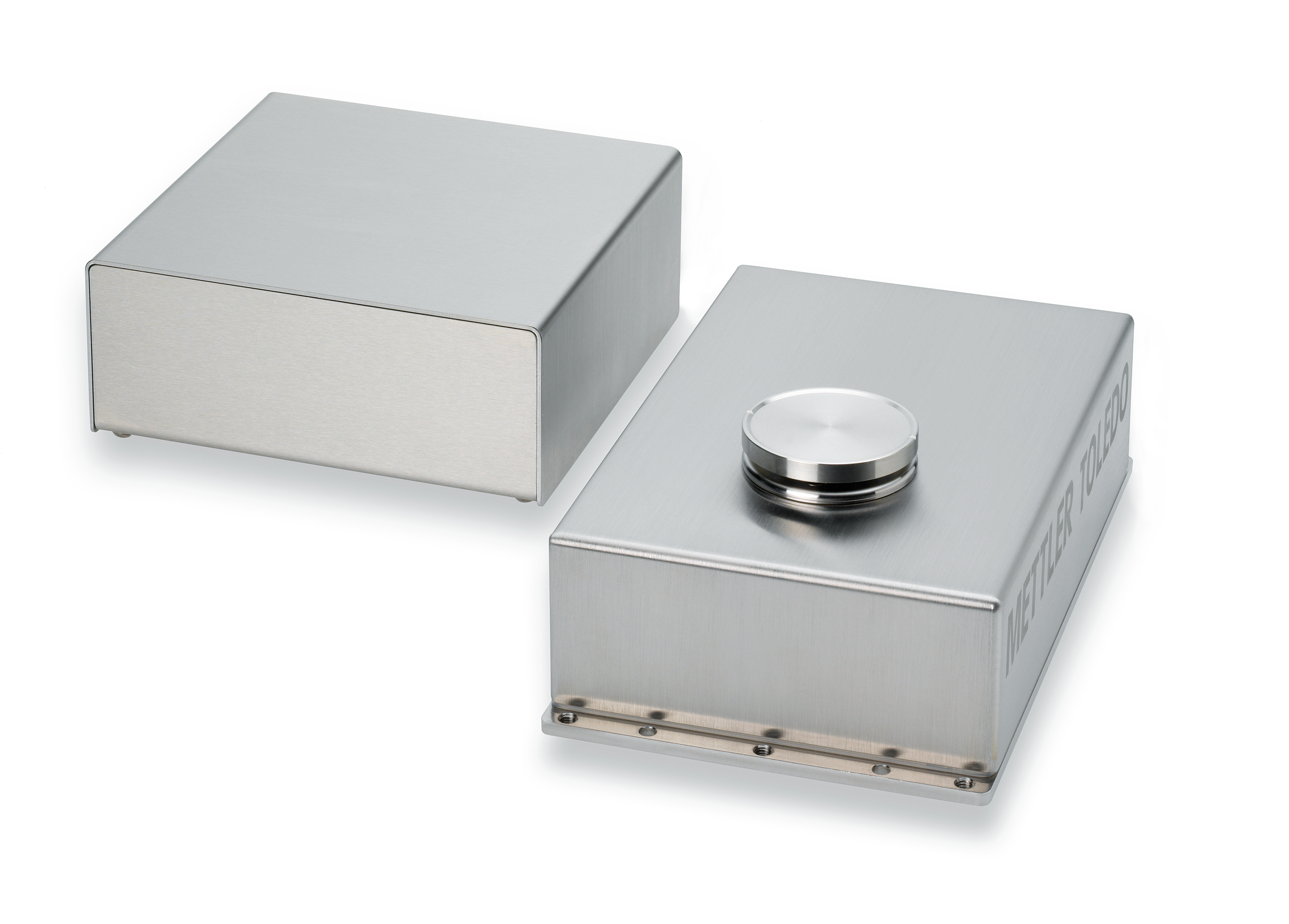

Get a tailored quote for the Weigh Module WXS205SDUV/15.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
· Load Cells & Weigh ModulesWeigh Module WXS205SDUV/15
