Specifications
Protection Rating
IP40;IP30;IP45
Maximum Capacity
11 g;22 g
Readability
0.001 mg;0.01 mg
Interfaces
Ethernet Option;RS232
Internal Adjustment
Yes
Internal Electronics
Yes
Legal for Trade
No
Washdown
No
Power Supply
12 V DC
Repeatability (sd) @ nominal load
0.006 mg
Dimensions
127 mm
Dimensions
236 mm
Dimensions
76 mm
Maximum Preload
15.8 g
Interface update rate (max)
92 Hz;23 Hz
Product Line
WXS
Adjustment
Internal
Repeatability, typical
0.004 mg
Alpha (Fine range)
0.00000804 g
Beta (Fine range)
0 g
Alpha (Coarse range)
0.00001143 g
Beta (Coarse range)
0 g
INQUIRY

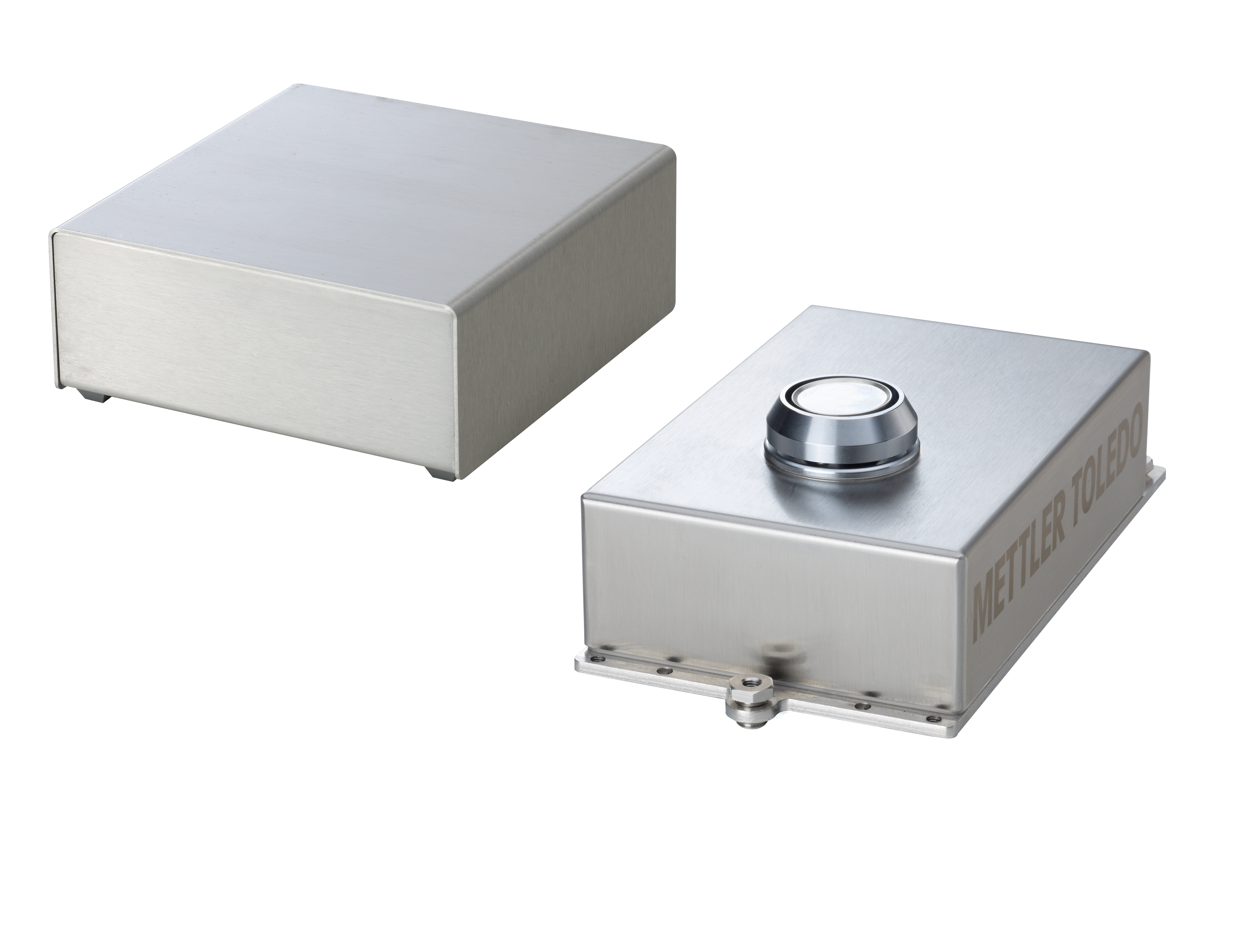

Get a tailored quote for the Weigh Module WXS26SDUV/15.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
· Load Cells & Weigh ModulesWeigh Module WXS26SDUV/15
