Gold & Carat Balances

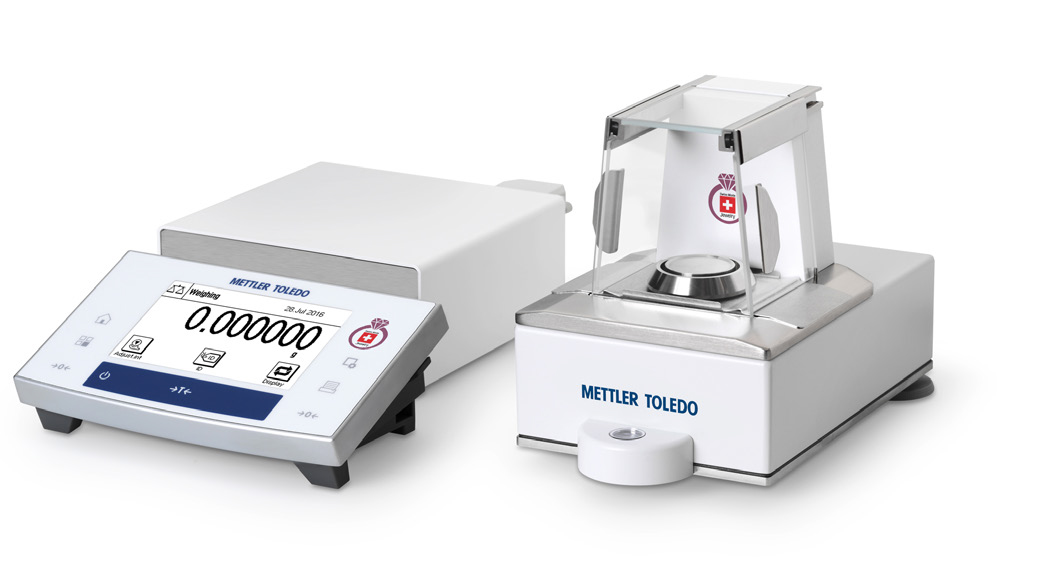

Weigh Module WXTJ3DU
Precise weighing for your smallest jewelry samples. 1.2 / 3.2 g capacity, 0.001 / 0.01 mg readability, high resolution weighing cell, touchscreen, FACT fully automatic internal adjustment, practical size
Specifications
Adjustment
Internal / FACT
Legal for Trade
No
Housing
Die-cast aluminum
Interfaces
RS232
Balance Model (Carat/Gold)
Gold;Carat
Display
Touchscreen
GWP Weights CarePac available
Yes
Maximum Capacity
1.2 g;3.2 g
Readability
0.001 mg;0.01 mg
Repeatability, limit
0.001 mg
Minimum Weight (U=1%, k=2), typical
0.16 mg
Weighing Pan Diameter
32 mm
Repeatability, typical
0.0008 mg
Settling Time
5 s
Dimensions
261 mm
Dimensions
165 mm
Dimensions
127 mm
Guaranteed Repeatability
0.001 mg
Connectivity
PC;Printer
Product Line
WXTJ
Model Approval Number
IND/13/17/99
Class
I
Min
0.1 g
"e" {Indian attribute}
1 mg
"d"
0.001 mg;0.01 mg
INQUIRY
Get a tailored quote for the Weigh Module WXTJ3DU.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to your sector will respond within one business day.
