Load Cells & Weigh Modules

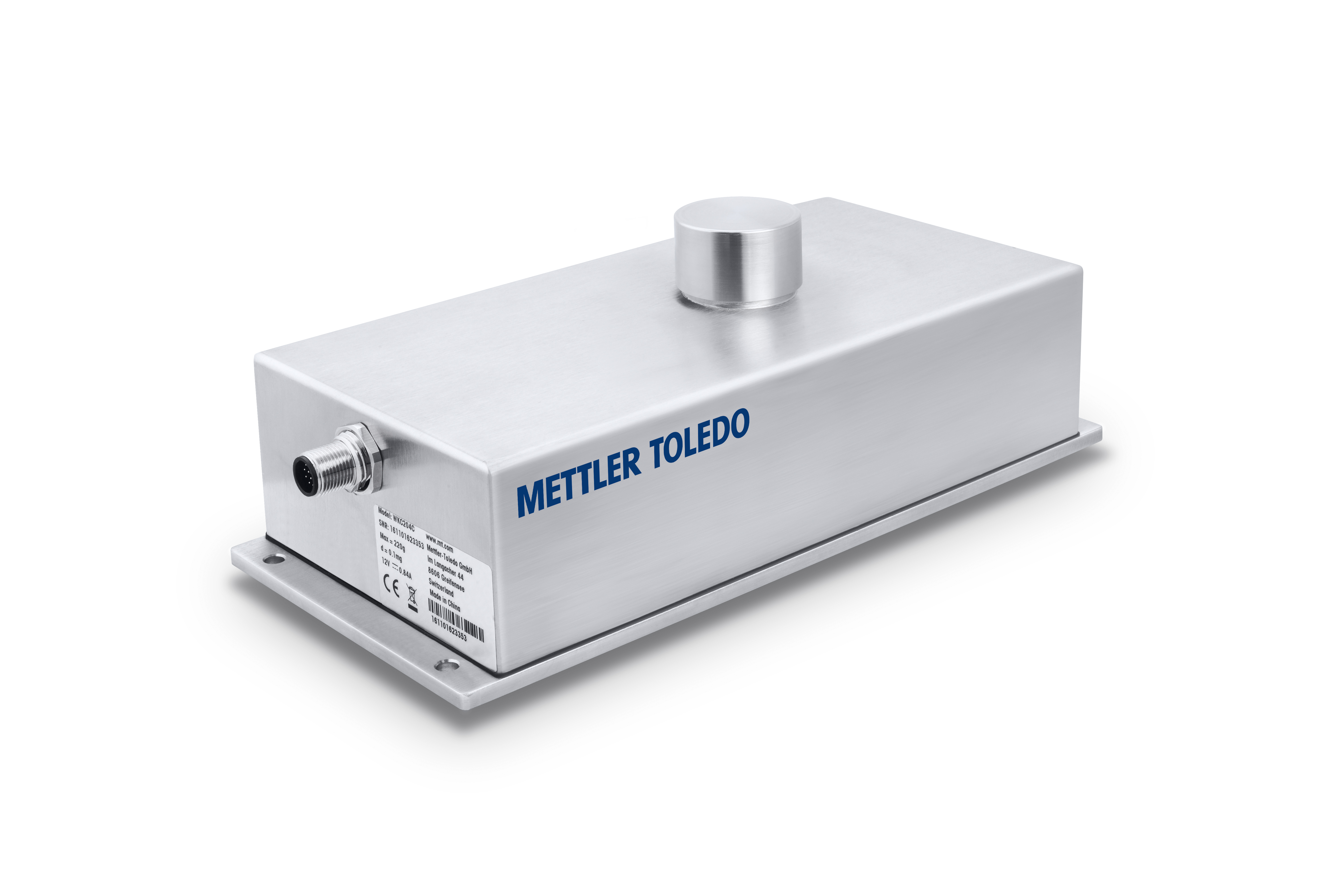

Weighing Module WKC6002C
The WKC weigh modules enable periodic onboard sample checks to ensure long-term process stability.
Specifications
Interfaces
RS422;RS232
Power Supply
12 to 24 VDC
Maximum Capacity
6.2 kg
Dimensions
251.5 mm
Dimensions
112 mm
Dimensions
90.5 mm
Interface update rate (max)
92 Hz
Readability
0.01 g
Protection Rating
IP42
Internal Adjustment
Yes
Internal Electronics
Yes
Legal for Trade
No
Washdown
No
Repeatability (sd) @ nominal load
0.01 g
Maximum Preload
150 g
Product Line
WKC
Adjustment
Internal
Repeatability, typical
10 mg
Alpha (Fine range)
0.02160247 g
Beta (Fine range)
0 g
INQUIRY
Get a tailored quote for the Weighing Module WKC6002C.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
