Load Cells & Weigh Modules

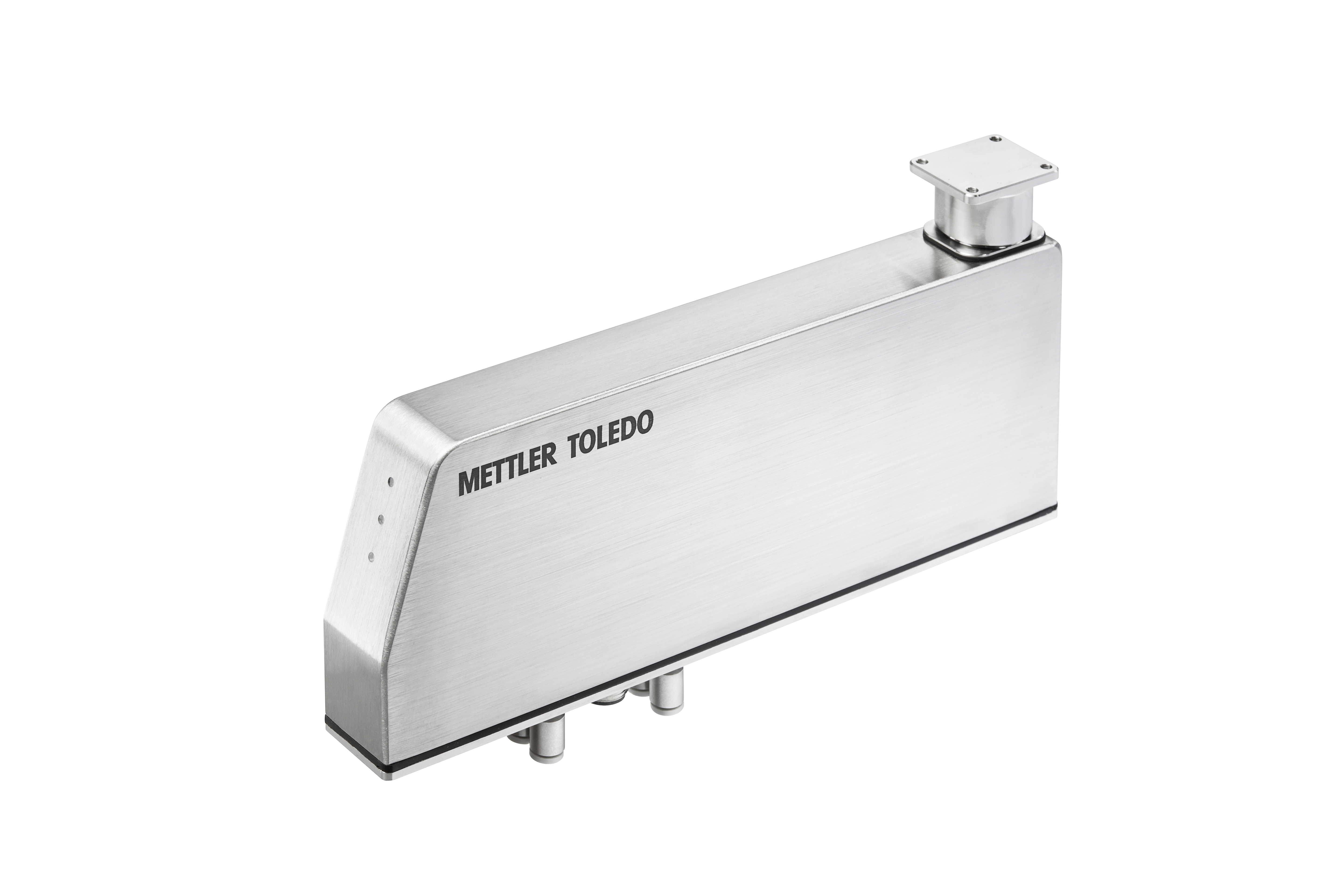

Weighing Module WMF303C-L/PN
The WMF weigh modules offer a slim footprint with direct Industrial Ethernet connectivity for high-speed, multi-line applications.
Specifications
Protection Rating
IP44
Interfaces
PROFINET;TCP/IP
Power Supply
Power over Ethernet
Maximum Capacity
320 g
Dimensions
200 mm
Dimensions
25 mm
Dimensions
100 mm
Readability
0.001 g
Internal Adjustment
Yes
Internal Electronics
Yes
Legal for Trade
No
Washdown
No
Repeatability (sd) @ nominal load
0.001 g
Maximum Preload
25 g
Interface update rate (max)
92 Hz;366 Hz
Product Line
WMF
Adjustment
Internal
Repeatability, typical
0.4 mg
Alpha (Fine range)
0.0011431 g
Beta (Fine range)
0 g
INQUIRY
Get a tailored quote for the Weighing Module WMF303C-L/PN.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
