Load Cells & Weigh Modules

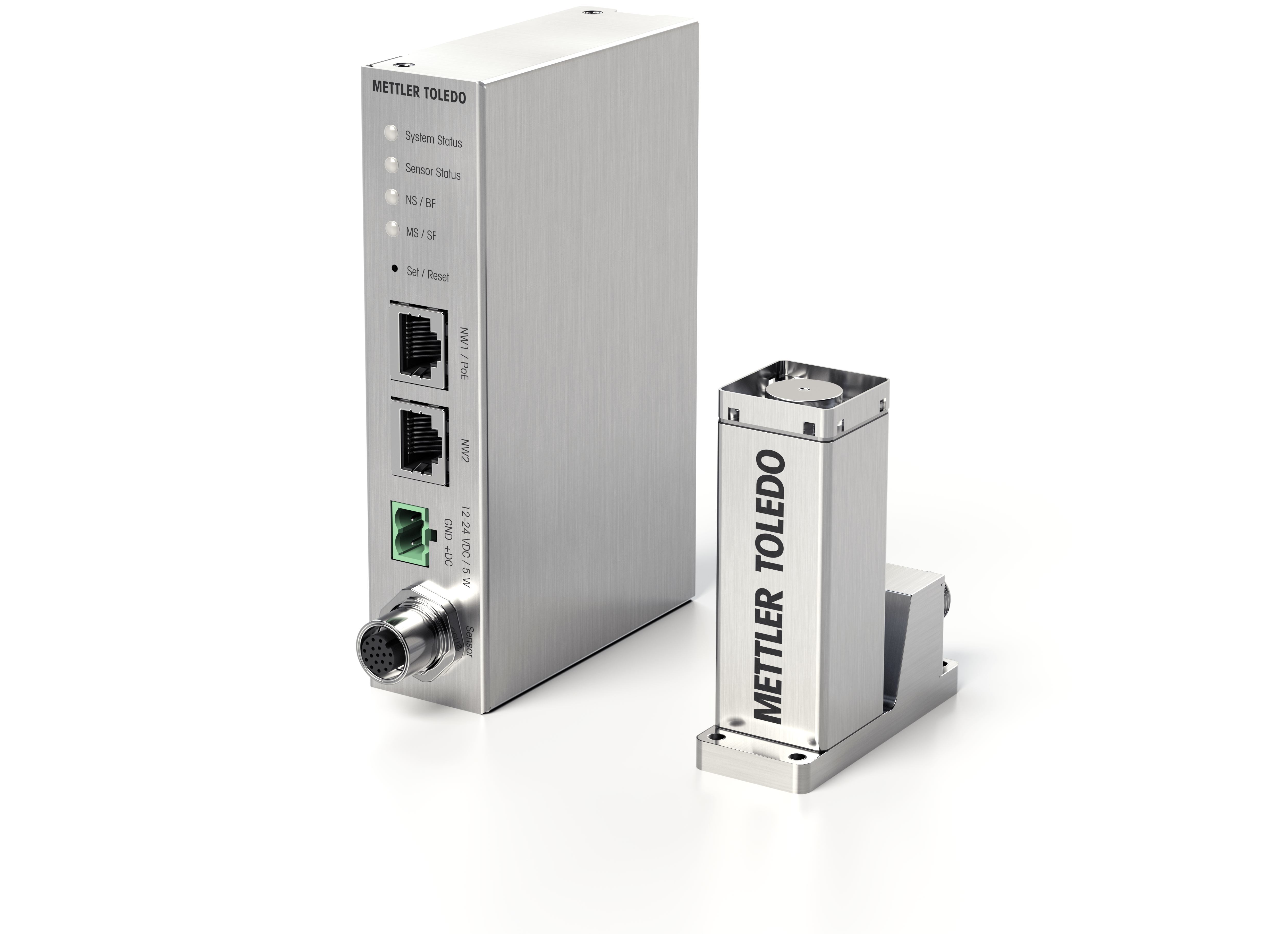

Weighing System SPC214-111
The highest degree of miniaturization enables precision weighing applications where installation space is a premium.
Specifications
Maximum Capacity
21 g
Readability
0.1 mg
Interfaces
PROFINET;TCP/IP;EtherNet/IP
Protection Rating
IP54;IP30;IP20;IP56
Internal Adjustment
No
Internal Electronics
No
Legal for Trade
No
Washdown
Optional
Power Supply
Power over Ethernet;12 to 24 VDC
Repeatability (sd) @ nominal load
0.1 mg
Dimensions
25.2 mm
Dimensions
71.5 mm
Dimensions
74.45 mm
Maximum Preload
4 g
Interface update rate (max)
92 Hz;366 Hz
Product Line
SPC
Adjustment
External
Repeatability, typical
0.08 mg
Alpha (Fine range)
0.00017963 g
Beta (Fine range)
0 g
INQUIRY
Get a tailored quote for the Weighing System SPC214-111.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
