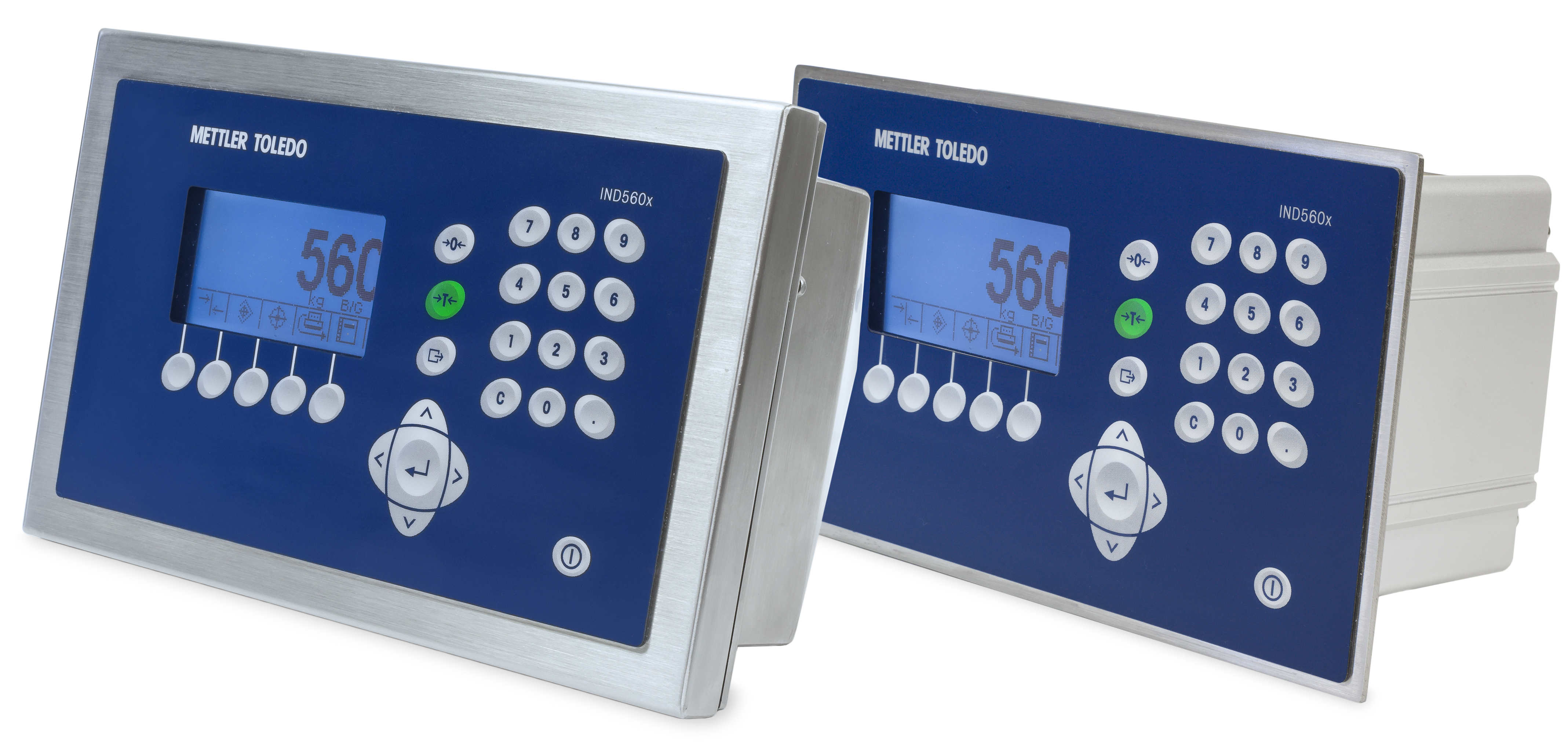

Weighing Terminal IND560x

IDNet;Analog;SICSpro

IEC Ex;ATEX Cat. 2GD;FM Division 1

Intrinsically safe RS232

4-20 mA Analog Output;DeviceNet;PROFIBUS DP;EtherNet TCP/IP;EtherNet/IP;Discrete I/O

Battery Version;AC Version

Dot matrix LCD

Panel;Wall;Column;Desk

alpha-numeric keypad

Stainless Steel

IP65

No

No

MinWeigh: Minimum Weigh determination acc. your tolerance limits

Optional Interfaces: PLC, Ethernet TCP/IP, Discrete I/O;Variety of Interfaces: For easy process integration;Standard Interfaces: Fiber optic or current loop to safe area module

Data Export: Via FTP to PC;Tables: Multiple customizable tables;Convenient Printing: Standard and configurable templates;Scale Diagnostics: Email alerts, web browser

Password Protection: 4 levels of password;Alibi Memory: Stores all weighing results;Hazardous Area Approval: Zone 1/21, Div 1;Data Logging: Multiple logs for operational change and error tracking

Mobile Operation: Battery optional available;Versatile Terminal: For many weighing tasks in hazardous areas;Good Readability: Graphic LCD display;Mounting: Panel, wall/column versions

Optional mounting brackets available;ACM500 Module provides IND560x connectivity for add'l Serial ports,;APS768x powered version or hazardous area battery powered version;Optional Active or Passive internal digital I/O with latched or unlatched outputs

Groups A-G T4;FM US & Canada: IS, Class I, II, III;I/1/;Class III, 10,000e;OIML Class II resolution determined by platform approval;Div 1

IND560x

Embedded logic for material transfer and over/under mode;Memory tables for 25 targets and 25 tare values;Supports single Analog or IDNet base;Large Backlit LCD graphical Display;TraxEMT™ maintenance features;One Intrinsically Safe RS-232 Serial Port;TraxDSP™ digital filtering and;Type 4x/12 Panel-mount or IP69k Desk Harsh Environment model

289 mm

11.38 in

183 mm

7.2 in

170 mm

6.7 in

30
