Weighing Terminals & Peripherals

Weighing Terminal IND570xx

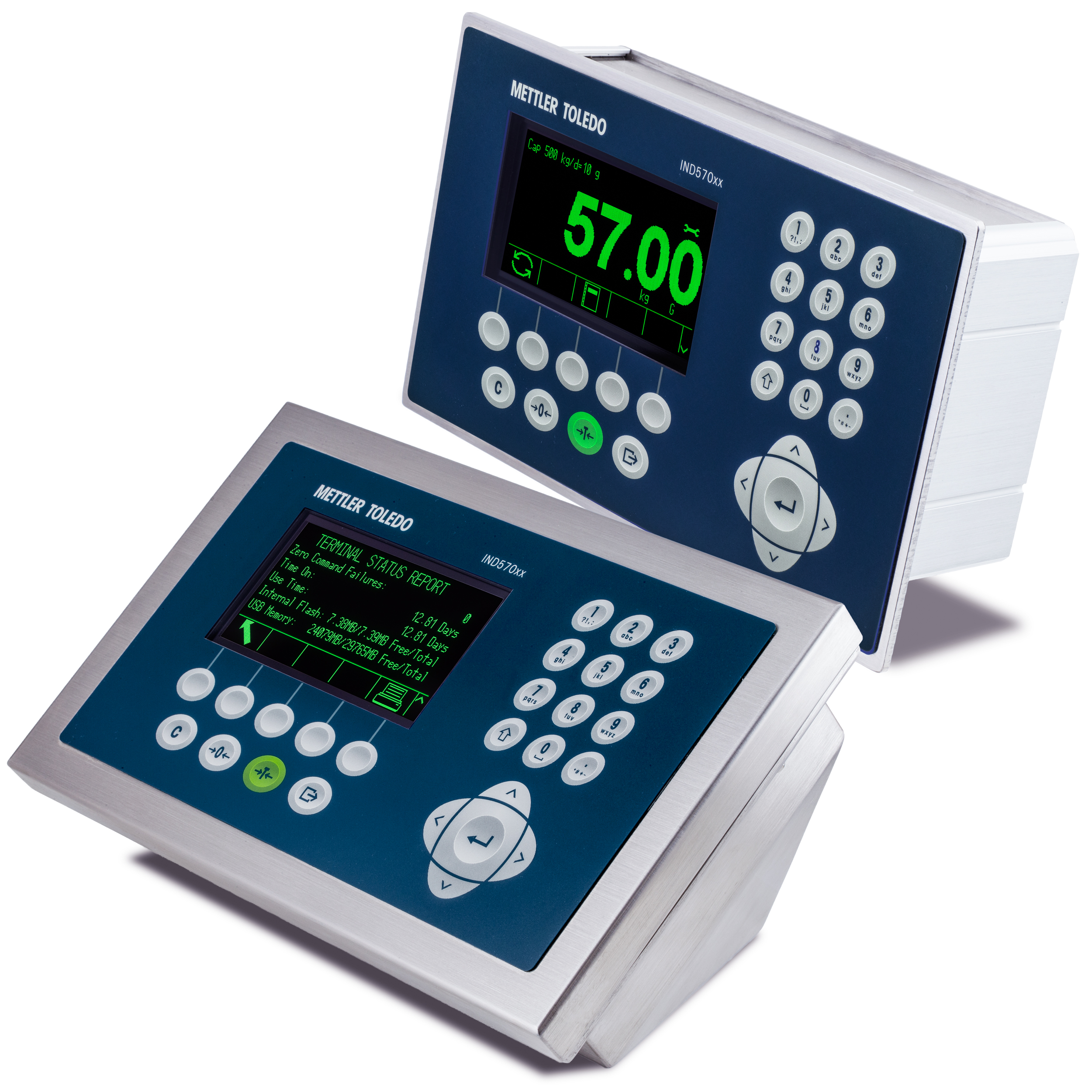

Name: Weighing Terminal IND570xx
Brand: METTLER TOLEDO

The IND570xx terminal provides accurate, verifiable measurement for industrial weighing processes in classified areas

CategoryWeighing Terminals & Peripherals

IndustryPetro Chemical, Plastic

ReferenceWEIGHING-TERMINAL-IND570XX

Request a Quote →

Specifications

Scale

IDNet;Analog;POWERCELL;SICSpro

Hazardous Approval

IECEx Zone 2/22;ATEX Cat. 3GD;cFMus Div 2

Communication

RS232/422/485

Application Software

Dosing;Vehicle weighing;TaskExpert custom programming;Over/under checkweighing;Formulation;Filling

Communication (Optional)

4-20mA or 0-10VDC Analog Output;PROFIBUS DP;DeviceNet;EtherNet TCP/IP;Modbus TCP;EtherNet/IP;Discrete I/O;ControlNet

Voltage

Universal power supply (100-240 VAC);24 VDC Version

Display

Graphic OLED

Mounting Flexibility

Panel;Wall;Column;Desk

Key Pad {text}

alpha-numeric keypad

Housing

Stainless Steel

Protection Rating

IP65

CalFREE Calibration

Yes

Custom programmable

Yes

Hygienic Design

Yes

Performance Optimization

MinWeigh: Minimum Weigh determination acc. your tolerance limits;Test Manager GWP: Supports routine testing of weighing system;Calibration Log File: Stores all calibration Data

Process Integration

Variety of Interfaces: For easy process integration

Data Management

Tables: Multiple customizable tables;Convenient Printing: Standard and configurable templates;Fast Data Export: Via FTP to PC

Compliance Support

User Management: 4 levels of password;Alibi Memory: Stores all weighing results;Data Logging: Multiple logs for operational change and error tracking

Versatility

Versatile Terminal: For a wide range of applications

Dimensions

289 mm

Dimensions

11.38 in

Dimensions

155.8 mm

Dimensions

6.13 in

Dimensions

8.07 in

Dimensions

205 mm
