Weighing Terminals & Peripherals

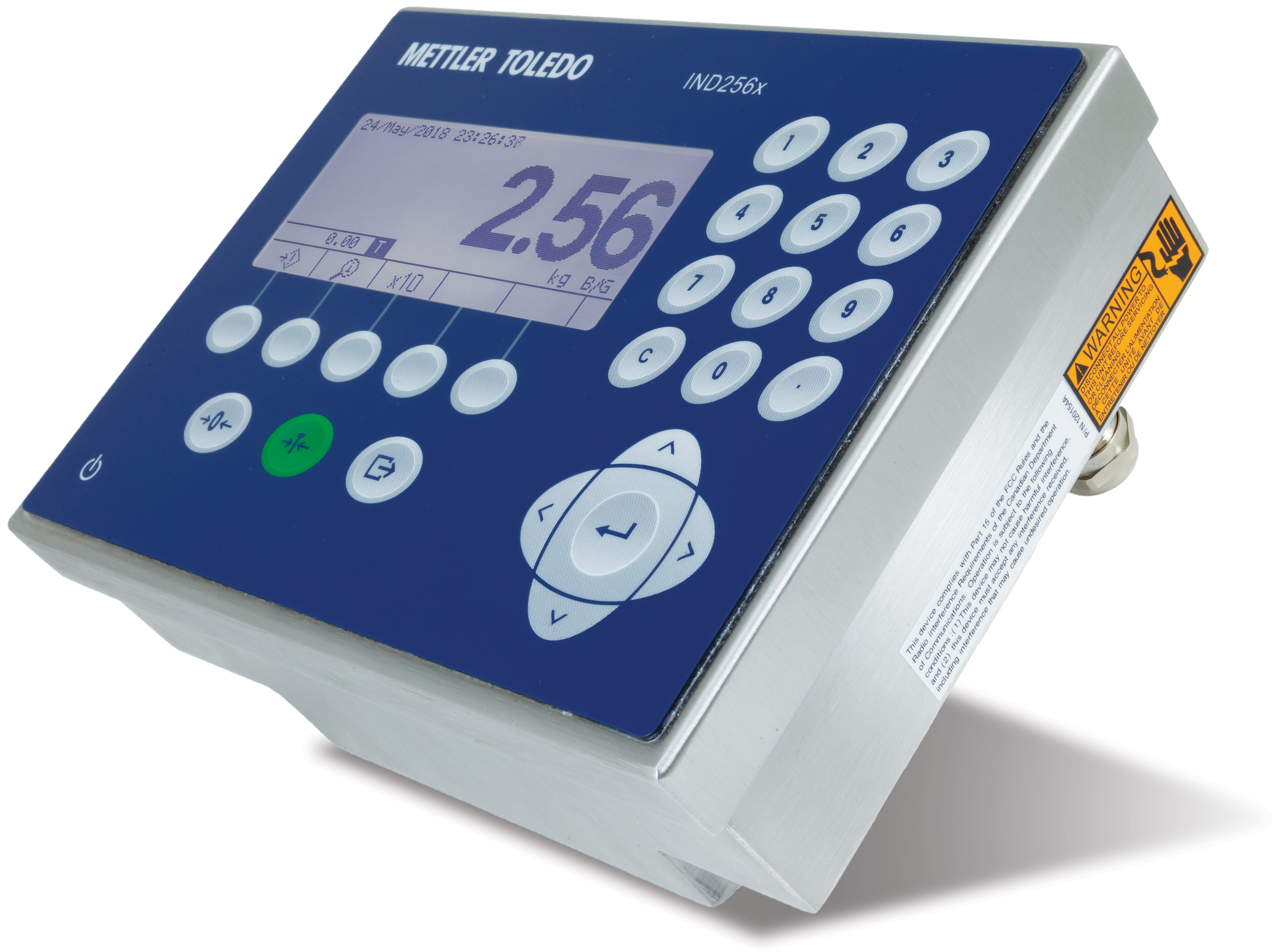

WeighingTerminal IND256x
Weighing Terminal IND256x (No WiFi) for Zone 1, Gas Group IIC and Zone 21, Dust Group IIIC
Specifications
Scale
Analog;4 x 350 Ohm Load Cells
Hazardous Approval
ATEX Cat. 2GD;IECEX Gb/Db
Communication
Intrinsically safe RS232
Communication (Optional)
4-20 mA Analog Output;Intrinsically Safe Passive Current Loop Communication Interface;Intrinsically Safe Active Current Loop Communication Interface
Voltage (Optional)
Battery Version;24 VDC Version;Built in, 187 VAC to 250 VAC , 50/60 Hz
Display
LCD Display with white backlight
Mounting Flexibility
Tabel/Wall/Column
Housing
Harsh Stainless Steel
Protection Rating
IP66
Dimensions
230 mm
Dimensions
173 mm
Dimensions
127 mm
A/D Update Rate
366 Hz
INQUIRY
Get a tailored quote for the WeighingTerminal IND256x.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Petro Chemical will respond within one business day.
